Round-Head Concealed Shower Sets

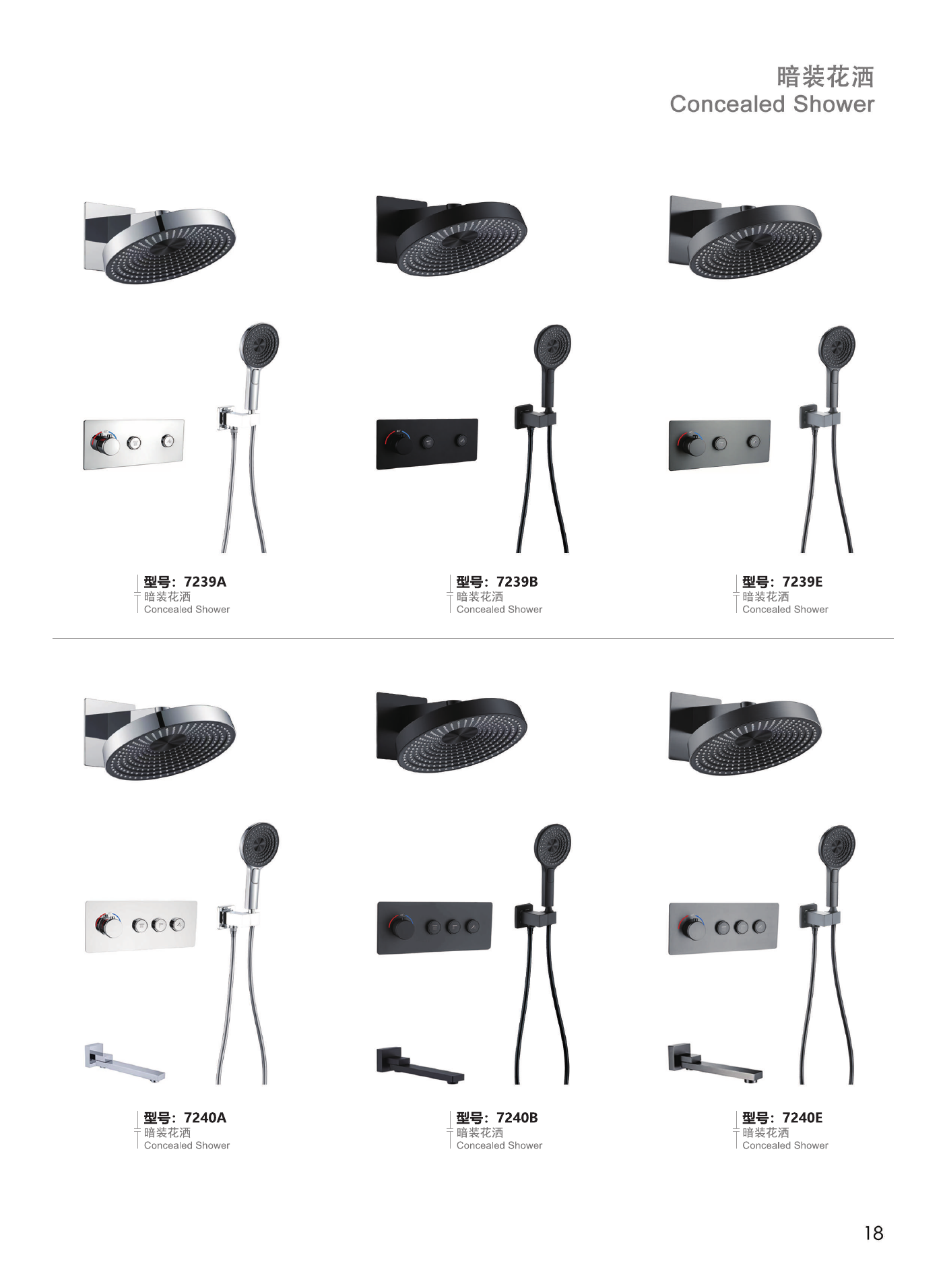

Round-head concealed shower sets 7239 and 7240 pair a thick circular overhead head with a round handset and horizontal trim. Six pictured versions share this shape language. Their main visible layout difference is the additional bath spout shown with 7240.

Round-Head Concealed Shower Sets: Representative Comparison

7239 has a large left-side knob and two smaller round controls on the horizontal plate. The handset sits separately on its holder, connected by a flexible hose. No bath spout appears in this configuration. Confirm the actual valve functions rather than assigning them from the control count.

7240 adds a separate wall-mounted bath spout and a third smaller control beside the large knob. Keep this additional outlet on the plumbing drawing and supplied-parts list. A matching head shape does not make the two concealed bodies or trim assemblies interchangeable.

Both families appear as A, B and E versions. Use the entire code when requesting samples or replacement components. Compare the basic concealed shower configurations for thinner heads or square alternatives. The circular head and central face detail do not establish a spray-mode count or a thermostatic safety function.

Complete Catalogue Model List

7239A, 7239B, 7239E, 7240A, 7240B, 7240E.

Round-Head Concealed Shower Sets: Installation Review

Allow for the full horizontal trim width and the handset holder when setting out the wall. Check the short head-mount projection against the intended standing position. For 7240, confirm the bath-spout connection and location before approving the concealed pipework.

Before closing the wall, approve the rough-in drawing and check finished-wall thickness, pipe connections and access for servicing. Specify supply pressure and available hot-water conditions. The catalogue image is a selection reference, not an installation drawing or a statement of operating limits.

Confirm the complete supply list: concealed body, trim, shower arm, head, handset, holder, hose and bath spout where pictured. Check mounting hardware and connections separately against the approved bill of materials. Review shower installation components when matching replacement or installation parts.

MOQ, Lead Time and Order Details

For shower-set orders, MOQ, production lead time and packing depend on the selected configuration and quotation. Do not apply a separate faucet-series MOQ or delivery schedule to these sets. Send the exact model suffix, quantity and destination before ordering.

Colour in a catalogue image does not establish the coating process, substrate or material grade. Request a finish sample, material schedule and destination-specific documents where required. The VA Plumbing Design Manual offers project design background; it does not certify these products.

To request a selected-model quotation, provide the model code, required finish, supplied-parts list and project drawing. State any required control function or compliance documentation explicitly. Approved drawings and the order specification take precedence over a photograph when confirming production details.

Round-Head Concealed Shower Sets: Buyer Questions

Are 7239 and 7240 thermostatic?

The current catalogue does not confirm thermostatic operation. Obtain a selected-model specification before requiring temperature regulation or an anti-scald function.

Does 7239 include a bath spout?

No separate bath spout is pictured for 7239. 7240 is the family that shows one; confirm inclusion in the quotation.

Is the head a multi-mode shower?

The photograph does not provide a verified mode count. Request the head specification and operating information for the chosen version.
