Horizontal Trim Concealed Showers, 7227–7228

Categories: Shower Systems

Product Selection & Project Quotation

Choose the model and configuration for your project. Send product codes, quantities, destination and installation drawings for a model-specific quotation.

Model Specifications: Confirm materials, dimensions and the required finish against the selected model and approved drawing.
Supplied Components: List the product, fittings and accessories included in the quotation; pictured items are not automatically one package.
Order Terms: Confirm MOQ, production timing and packing by model. OEM changes require separate confirmation.
Project Documentation: Request certification or test documents for the exact model, specification and destination where required.

Request a Model-Specific Quote
Send your model list and project requirements through the enquiry form below. Confirm the approved specification and supplied parts before ordering.

Horizontal Trim Concealed Showers

Horizontal trim concealed showers 7227–7228 place the visible controls across a rectangular horizontal plate. Six catalogue references pair this layout with a slim rectangular handset and two overhead head designs. The head profile is the main visual comparison, while the horizontal trim needs its own wall-setting review.

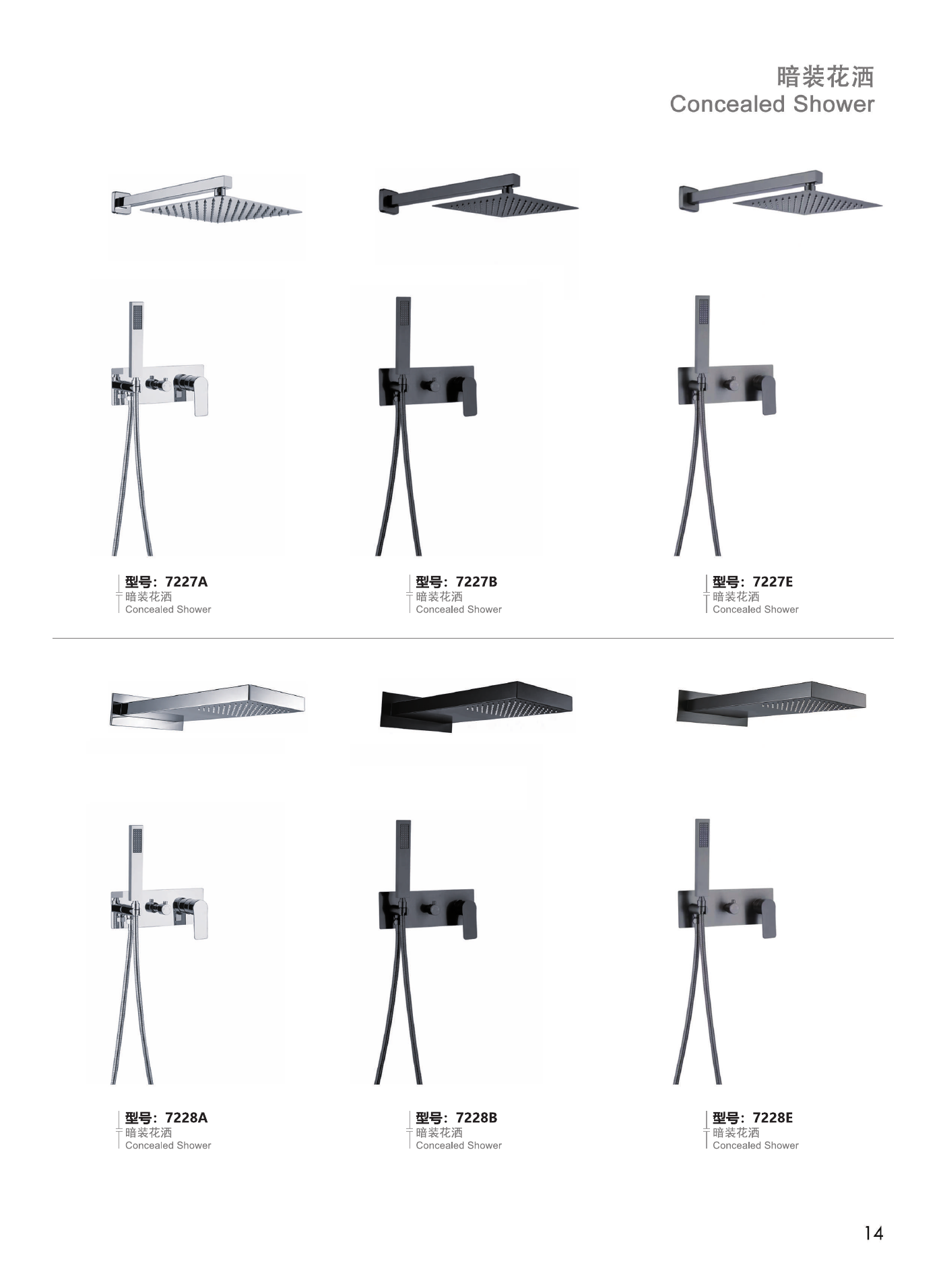

Horizontal Trim Concealed Showers: Representative Comparison

The 7227 group shows a thin square overhead head on a straight wall arm. Below it, the handset sits near the left side of the control arrangement. A small central control and a larger right-hand lever are visible, but their appearance does not establish the internal switching sequence.

The 7228 group uses a broader rectangular overhead form with a deeper, wedge-like side profile. This differs from the thin square outline of 7227. Check the actual projection and mounting drawing before using either illustration to judge clearance in a compact shower enclosure.

Neither group shows an independent lower bath spout. If the room requires that outlet, compare the 7229–7230 horizontal-trim bath-spout configurations. Do not treat a similar control plate as proof of matching outlet routing or simultaneous operation.

Complete Catalogue Model List

7227A, 7227B, 7227E, 7228A, 7228B, 7228E.

Reference	Configuration and selection differences
7227A / 7227B / 7227E	Thin square overhead head, straight wall arm and horizontal control trim.
7228A / 7228B / 7228E	Broad rectangular overhead form with a deeper side profile and horizontal trim.
Shared selection check	No separate lower bath spout pictured; confirm head projection, control spacing and concealed installation dimensions.

Horizontal Trim Concealed Showers: Installation Review

Before closing the wall, agree the installation depth, connection sizes, inlet spacing and service access. Ask for the concealed-body drawing and the selected trim dimensions. Also check head height, handset reach and hose clearance against the room plan. A catalogue image cannot provide these measurements reliably.

For the wider valve selection, browse the concealed shower valve collection. Confirm pressure requirements, temperature control, outlet switching and replacement-part access for the chosen code. Request material and finish documentation separately; head shape and control count do not establish certification or internal construction.

The VA plumbing design manual offers external design context for professional review. It is not a certificate or approval for these products. The project designer should establish the destination requirements and review the relevant model-specific evidence before purchase.

MOQ, Lead Time and Order Details

For wholesale enquiries, send complete model codes, quantities, destination and the required supplied-parts list through the project quotation form. Confirm MOQ, production lead time, packing and spare parts in the quotation. Shower orders do not automatically use the separate commercial terms for the faucet range. Approve the selected drawing and finish sample before confirming the order.

Horizontal Trim Concealed Showers: Buyer Questions

What is the visible difference between 7227 and 7228?

7227 shows a thin square overhead head. The 7228 head has a broader rectangular form and deeper side profile.

Do these horizontal trim concealed showers include a bath spout?

No independent lower bath spout is pictured in the six references. Choose a separate bath-spout configuration when the room requires one.

Can the head and handset run at the same time?

The pictures do not confirm simultaneous operation. Request the selected valve outlet diagram and performance information.
