Y1 Smart Toilet: Rounded Body & Version Options

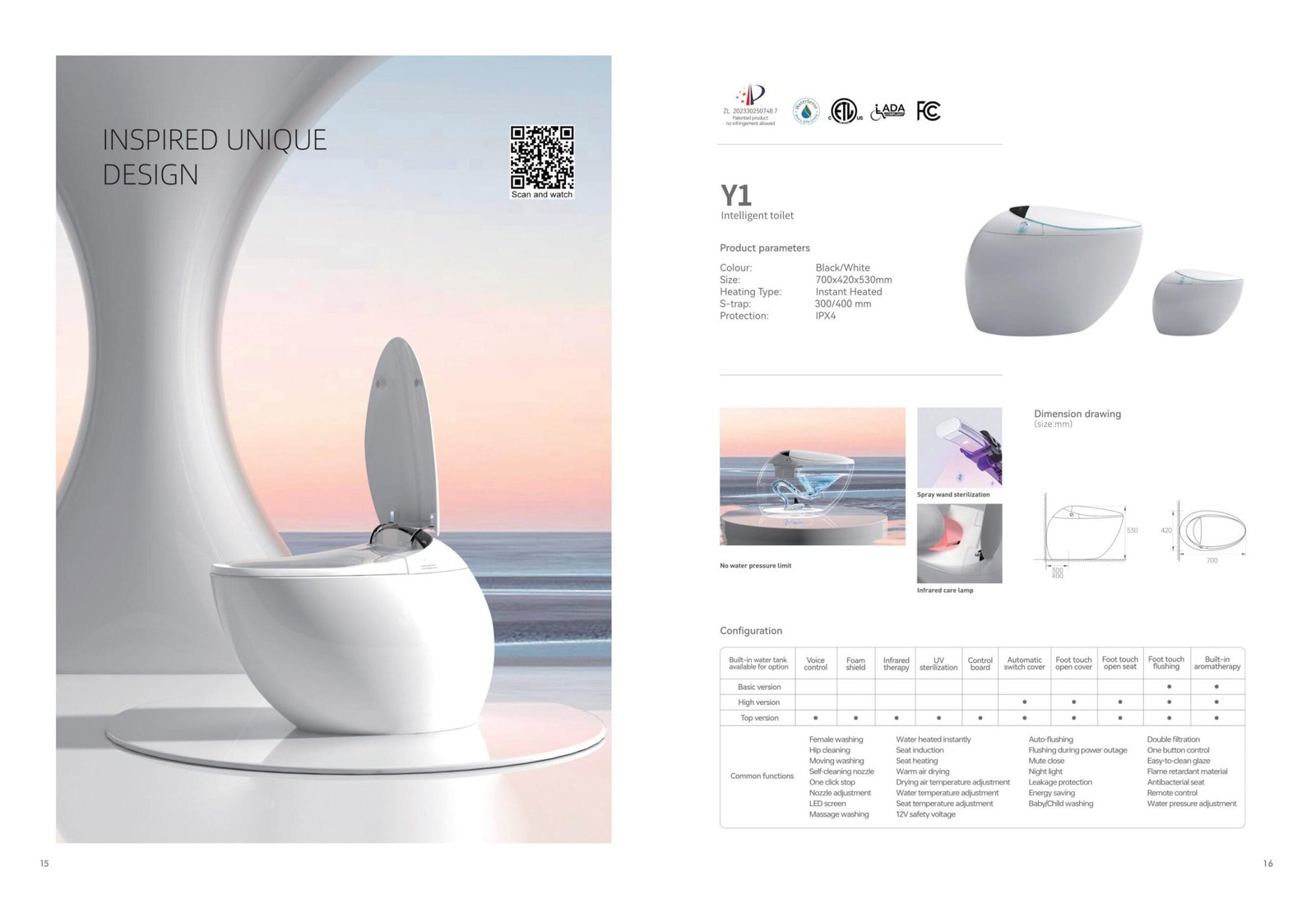

The Y1 smart toilet has a rounded, egg-shaped floor-standing body with a curved lid and side control area. The catalog gives 700 × 420 × 530 mm dimensions. Compare Basic, High and Top versions before confirming the outlet, water supply and electrical specification.

Y1 smart toilet: dimensions and water-system option

The sheet lists black/white, instant water heating, S-trap 300/400 mm options and IPX4. A built-in water tank is optional. The illustration does not provide a tested inlet-pressure range. Confirm the tank, water-system configuration and actual supply requirements before specifying a high-rise project.

Dimensions: 700 × 420 × 530 mm (L × W × H), not carton dimensions.
Installation: Select the 300 mm or 400 mm floor outlet and request the current fixing drawing.

Y1 smart toilet: model documents and installation

The catalog includes certification logos and nozzle-treatment illustrations. Request model/version-specific documents and check their current scope before market approval. No sterilization percentage, medical benefit or blanket certification status is established by these images.

Y1 smart toilet: Basic, High and Top comparison

Basic marks foot-touch flushing and fragrance. High adds automatic lid operation and foot-touch lid and seat opening. Top also marks voice control, foam, UV and an infrared feature. The infrared label is not evidence of a therapeutic effect.

Catalog feature	Basic version	Top version
Voice control and foam	Not marked	Marked; confirm supplied option
Foot-touch flushing / automatic lid opening	Flushing marked; opening not marked	Both marked
UV / infrared references	Not marked	Marked; request specification and relevant evidence

B2B packing and specification checks

MOQ is 20 units. Smart-toilet production takes 30–45 days after deposit confirmation, excluding transport. Standard packing uses a five-layer corrugated carton with foam protection. Confirm net and gross weights, carton dimensions and the loading plan for the selected model.

Q: Can the Y1 be specified for any inlet pressure?
No tested operating range is supplied by this image. The water tank is optional; request a model-specific pressure range and installation drawing for the selected version.

Q: Does every Y1 include automatic opening and foam?
No. High and Top mark automatic opening functions, while voice control and foam are marked for Top. Confirm the option list in the quotation.

Browse the smart toilet range and washing-equipped smart bidet configurations. For a model-specific quotation, send the version, quantity, outlet and destination. WhatsApp: +8617706399903.

For water-use requirements, consult EPA WaterSense toilet guidance. This reference does not certify the illustrated model.

A 250 mm S-trap floor-outlet version can be customized for this toilet series. This is an order-specific option, not the default for every version. Other catalog-listed outlet options remain available; specify one outlet and approve its installation drawing before production. Mains voltage and power plug can be customized for the destination. Send the destination country, required voltage and plug reference with the RFQ. Confirm the selected electrical configuration and applicable model-specific documents before ordering. Plug selection does not establish certification for every version.
