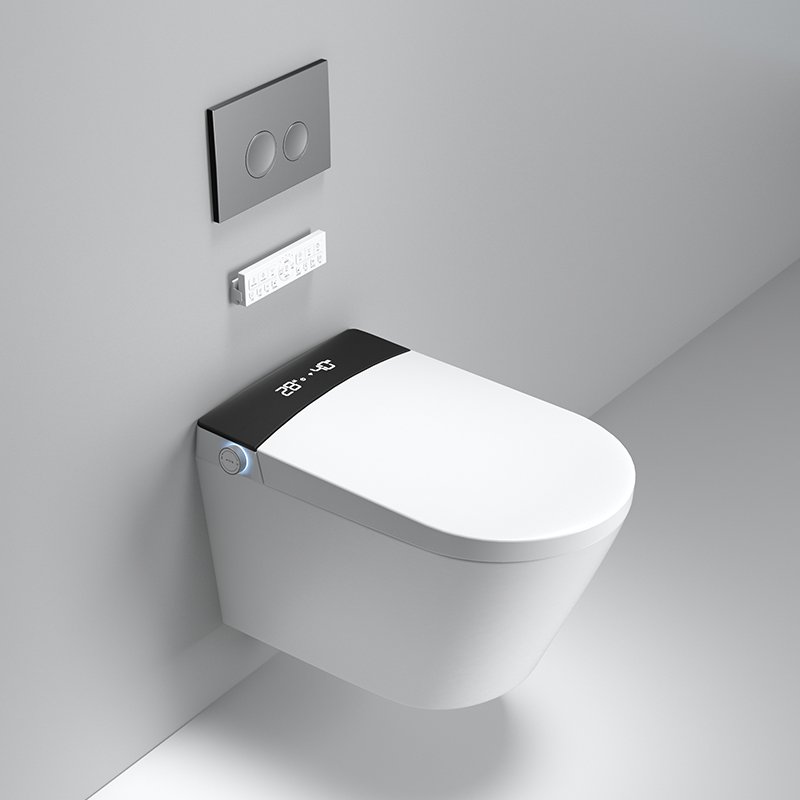

T3 Wall-Hung Smart Toilet with High Cistern
The T3 wall-hung smart toilet is supplied with a high concealed cistern in the standard quotation. The body measures 580 × 400 × 420 mm in the catalog, with a 180 mm P-trap reference. Select the feature version and approve the installation drawing.
MOQ is 20 units. Production takes 30–45 days after deposit confirmation, excluding transport. Packing uses a five-layer corrugated carton with foam protection. Confirm the ordered accessories and any extra pallet or wooden-case packing.
The toilet has a net weight of 31.5 kg and a main-carton gross weight of 35 kg; its carton measures 66 × 45 × 51 cm. The high-cistern package has a gross weight of 17.9 kg and measures 120 × 64 × 16 cm.
For those two packages only, the calculated total is 52.9 kg gross and 0.27435 m³. Additional cases, pallets and accessories are excluded. Confirm the high-cistern configuration and final loading plan before shipment.
T3 Wall-Hung Smart Toilet: Installation Review
1. Match the Frame and Mounting Drawing
Check the frame, fixing points, rear connection and wall build-up against the installation drawing. The seated-person graphic is not evidence of a 400 kg tested load. Request the relevant structural documents where a load rating is required.

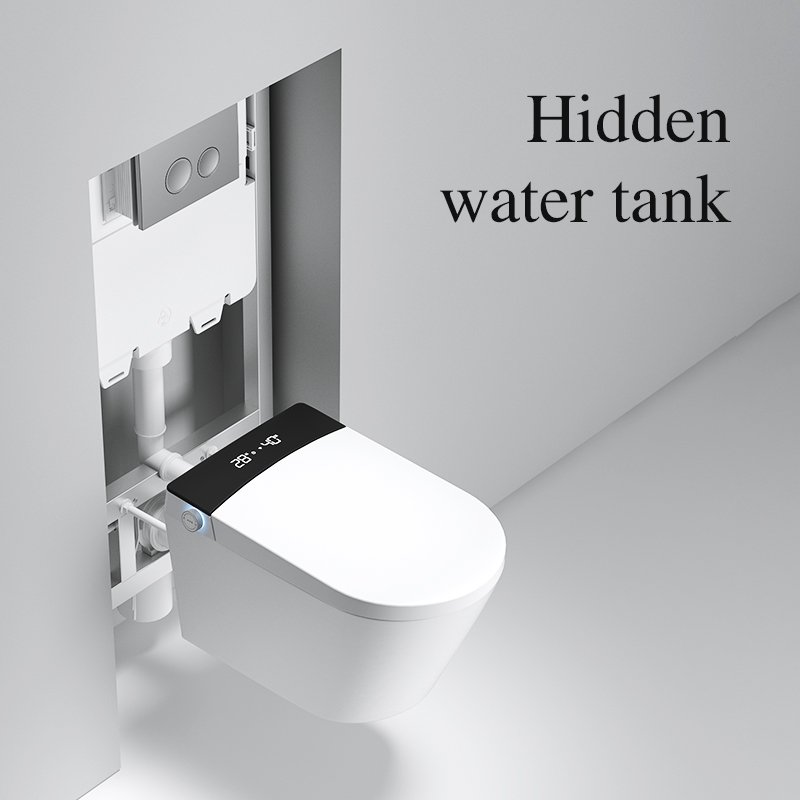

2. Confirm the Included High Cistern
The quotation includes a high concealed cistern. Approve its exact configuration, service access and supplied fittings. The illustration does not establish an HDPE grade, seam construction or a guaranteed leak-free result.

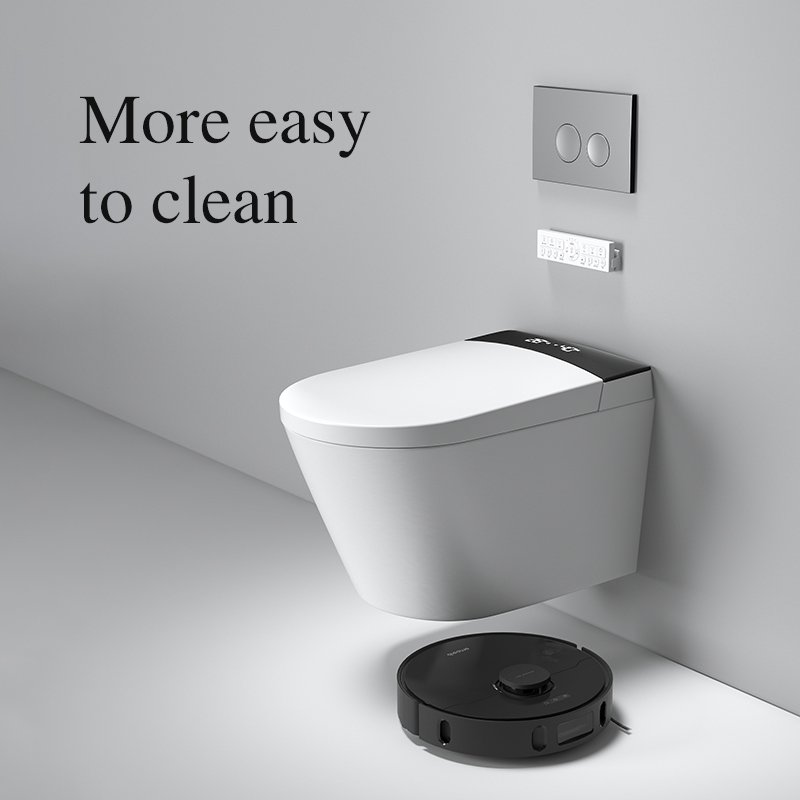

3. Review Floor Clearance
The wall-hung body leaves floor space below it. Confirm the installed height and cleaning-equipment clearance on the project drawing; the image does not prove compatibility with every robot cleaner.

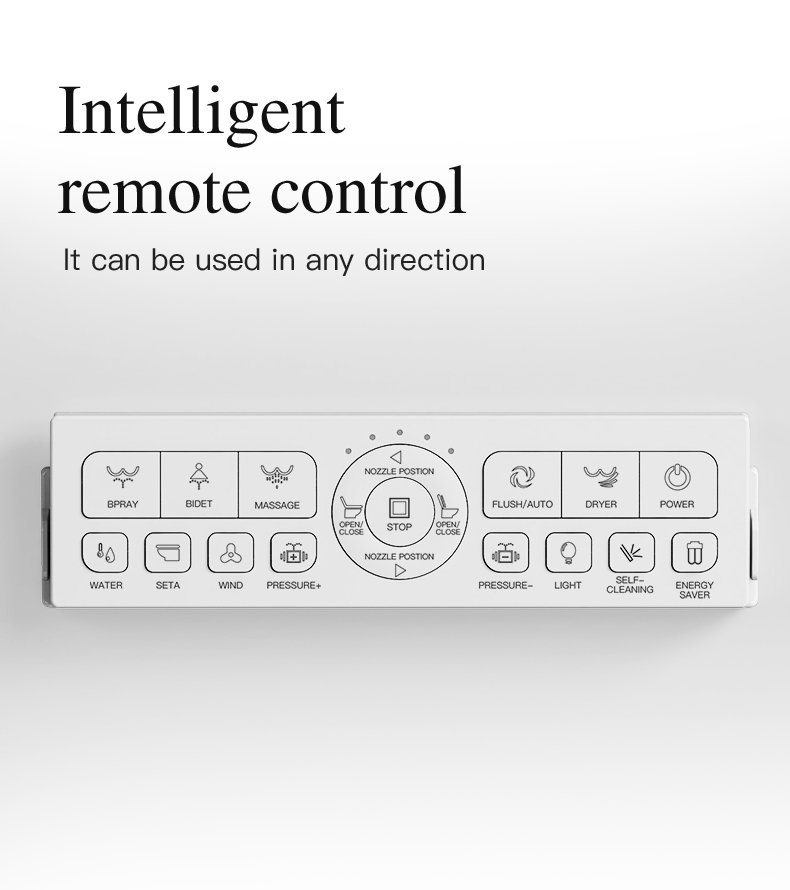

Controls and Version-Specific Options

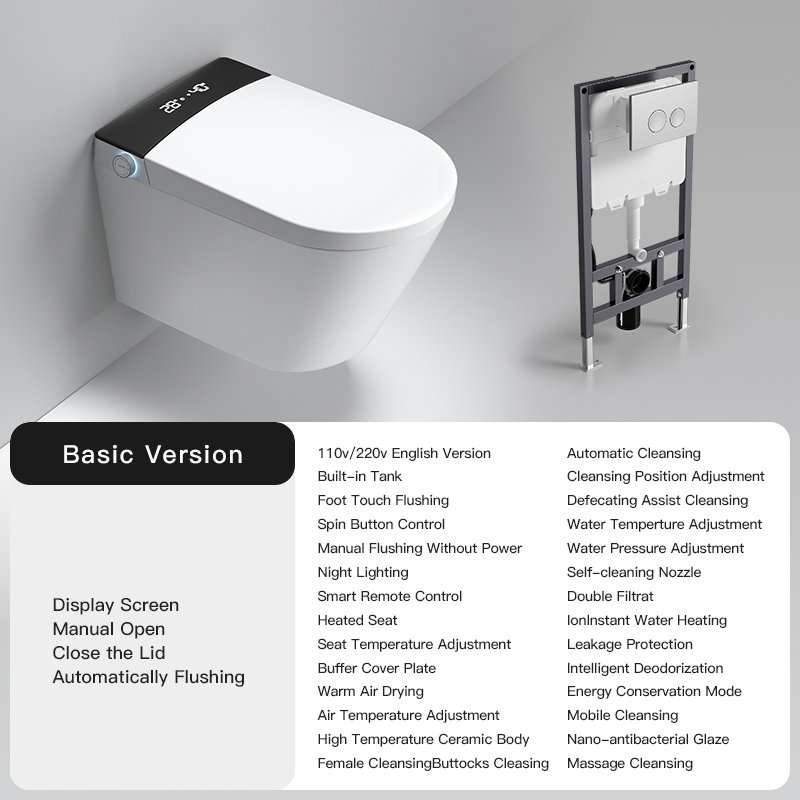

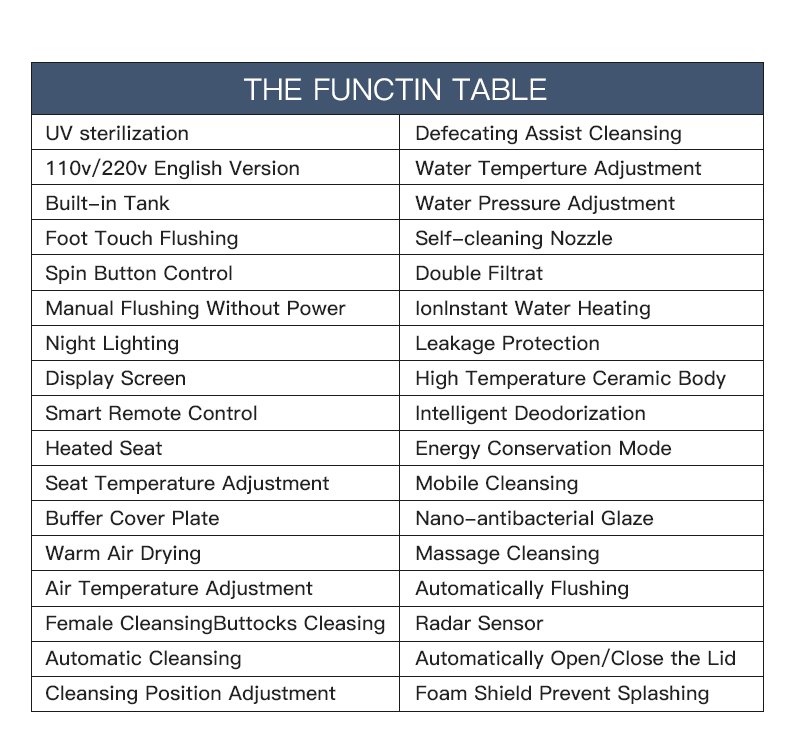

The main sheet compares Basic and High. Separate detail sheets also show a Top reference. Confirm the quotation against the selected sheet: Basic uses a manual lid; High adds automatic opening and UV; the Top detail sheet adds foam. A generic function table does not make every option standard.

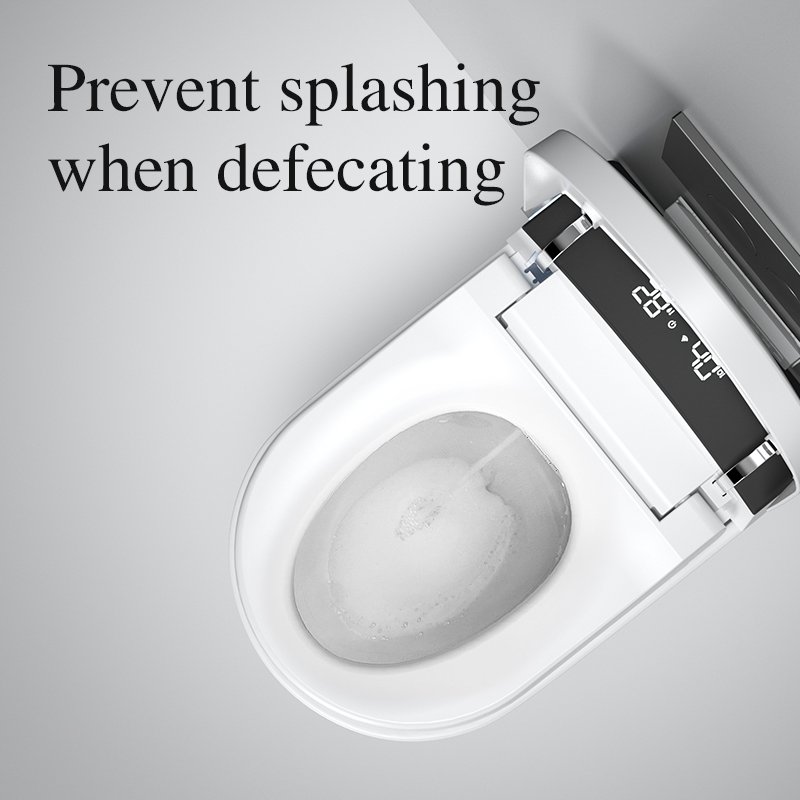

- Foam: shown in the Top detail sheet. Confirm the supplied system, consumables and maintenance instructions; no complete odor-removal guarantee is established.

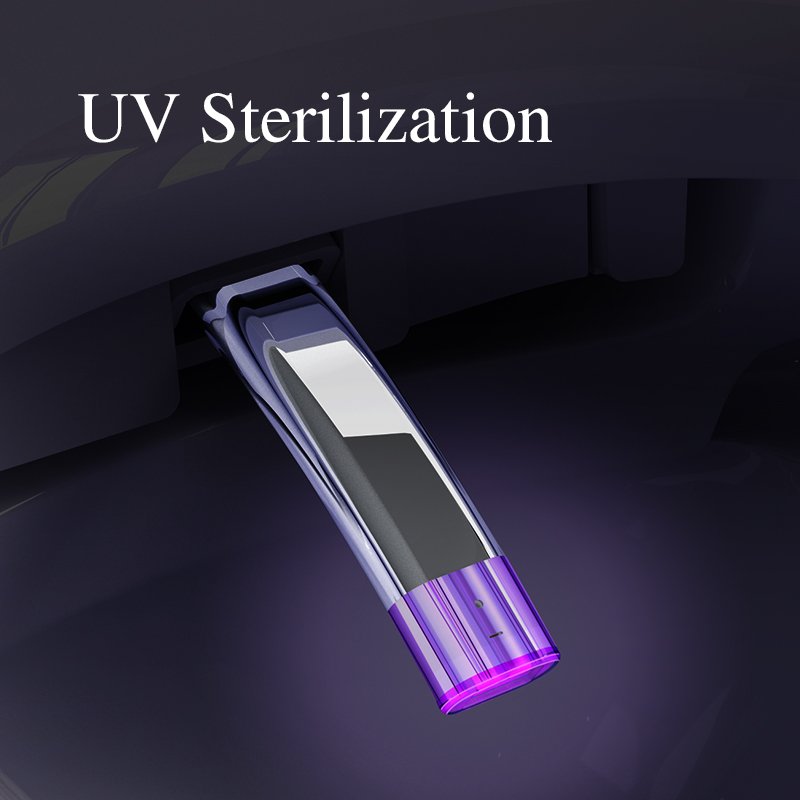

- UV: shown for High and Top. Request operating and test documents for a specified hygiene requirement, rather than claiming medical-grade sterilization.

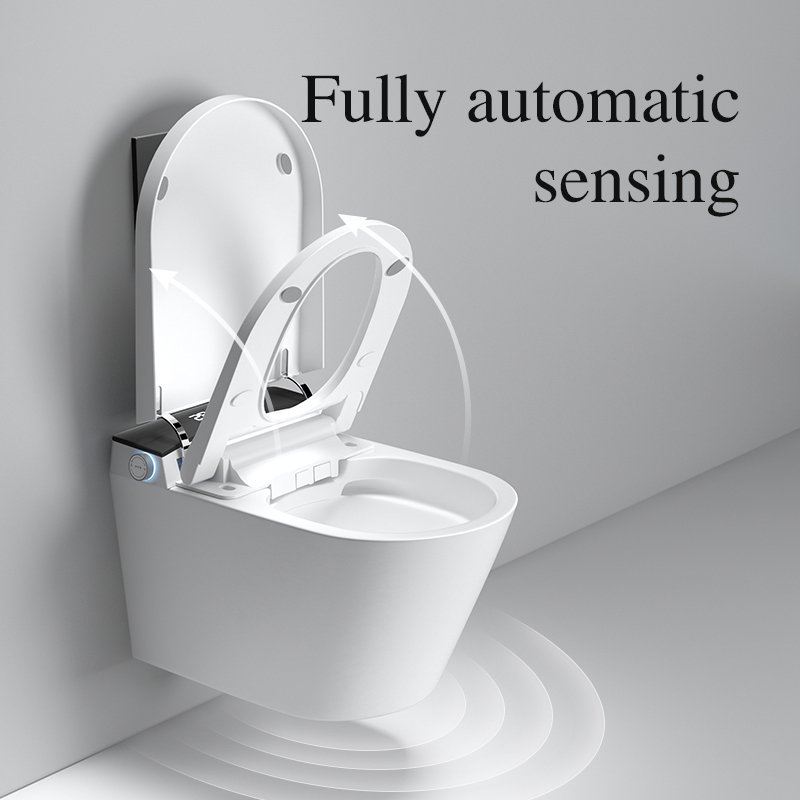

- Automatic opening: shown for High and Top. Confirm sensing and control behavior on a sample; the approach graphic alone does not identify radar technology.
T3 Wall-Hung Smart Toilet: Configuration References
| Feature reference | Basic | High | Top detail sheet |
|---|---|---|---|
| Display | Listed | Listed | Listed |
| Lid operation | Manual | Automatic reference | Automatic reference |
| UV function | Not marked | Marked | Shown |
| Foam system | Not shown | Not shown | Shown; confirm order |
Questions Before Ordering the T3
Q: What is included in the T3 quotation?
The high concealed cistern is included. Confirm its configuration, frame and fixing scope, electrical specification and accessory list before ordering.
Q: Can the 250 mm S-trap option be specified for this wall-hung T3?
No. This page describes the rear-outlet wall-hung configuration. The 250 mm floor-outlet option is not its installation specification; approve the rear-connection drawing.
Request a T3 Configuration Quotation
Send the T3 version, quantity, destination and wall-installation drawing. Confirm the included high cistern, outlet, electrical configuration and supplied components.
This is a wall-hung toilet. Confirm the rear outlet, concealed cistern and installation-frame drawing for the ordered model. The 250 mm S-trap floor-outlet option is not a specification for this wall-hung configuration.
Mains voltage and power plug can be customized for the destination. Send the destination country, required voltage and plug reference with the RFQ. Confirm the selected electrical configuration and applicable model-specific documents before ordering. Plug selection does not establish certification for every version.
Compare the smart toilet model range and washing-equipped toilet configurations. For water-efficiency context, see EPA WaterSense toilet guidance; this link is not certification of this model.
Send the selected model, version, quantity and destination through the quotation contact page. WhatsApp: +8617706399903.
