Shower Enclosure Layouts | YT06, S8688 & D570

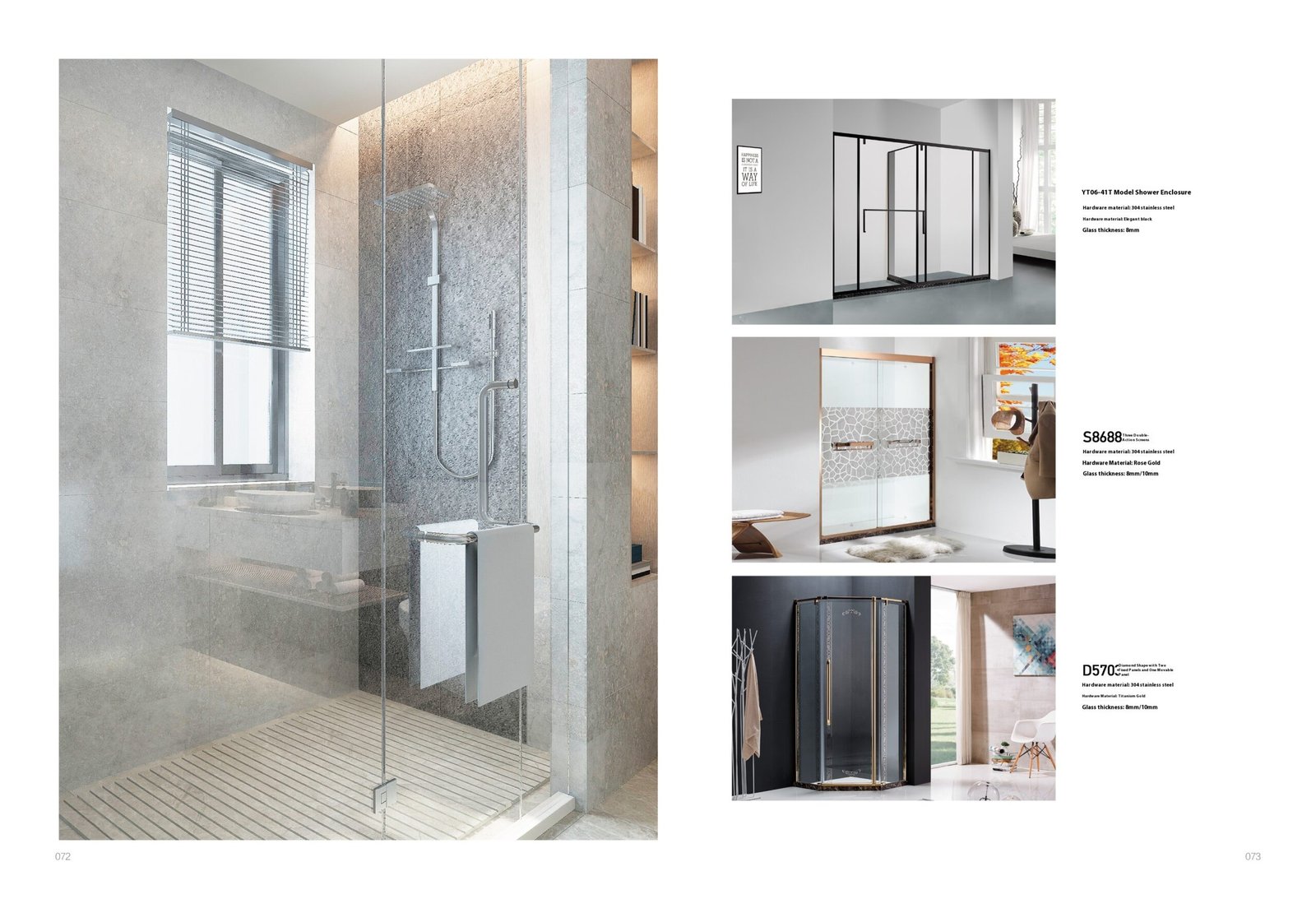

These shower enclosure layouts from 9CREAT show YT06-41T, S8688 and D570 references for bathroom project sourcing. The sheet combines a room-setting photograph with three named enclosure designs. It does not show a bathtub or establish a combined bath-and-enclosure package.

Compare shower enclosure layouts by model

YT06-41T: the catalog lists 304 stainless steel hardware, a black finish and 8 mm glass. The picture shows an angular enclosure with an opening door. Confirm handing and the door sweep on the installation drawing.

S8688: a straight screen reference with rose-gold-tone hardware and a decorative band across the glass. The sheet lists 304 stainless steel hardware and 8/10 mm glass options.

D570: the catalog describes an angular layout with two fixed panels and one moving panel. It lists 304 stainless steel hardware, a titanium-gold finish name and 8/10 mm glass options. The finish name does not establish a coating process.

Check the opening and supplied components

First, measure the finished walls and floor rather than the unfinished opening. Then ask for the selected enclosure drawing. Check overall width, height, usable entrance space and any adjustment allowance. The image does not give these dimensions.

Also list the required handles, seals, profiles and fixing parts in the quotation. Ask whether the shower tray is included or specified separately. Confirm the selected glass option and applicable documentation; a thickness label is not a safety test report.

For a coordinated bathroom, compare the hardware finish with an approved sample. Do not apply one model’s material or glass thickness to every reference on the page. Record the complete model code on the order.

Project quotation

Browse sliding shower door configurations or compare YS and R8102 enclosure references. The bathtub and shower enclosure range covers separate items, not one bundled bathroom package.

Send the selected reference, quantity, destination and room drawing through the B2B quotation page. List required accessories separately. Confirm MOQ, production timing, package dimensions and shipping weight for the selected order.

For US accessible projects, ask the designer to review the US Access Board bathing-room guide against the installation plan. This resource does not certify the pictured product.

Shower enclosure questions

Q: Does this page include a bathtub?
A: No. The original page title mentioned a bathtub, but the catalog image shows shower enclosures. Quote a bath separately if one is required.

Q: Do all three models use 8 mm glass?
A: YT06-41T lists 8 mm. S8688 and D570 list 8/10 mm options. Confirm the selected option and enclosure drawing before ordering.
