Bathtub Model Dimensions | 1822–1833 Catalog

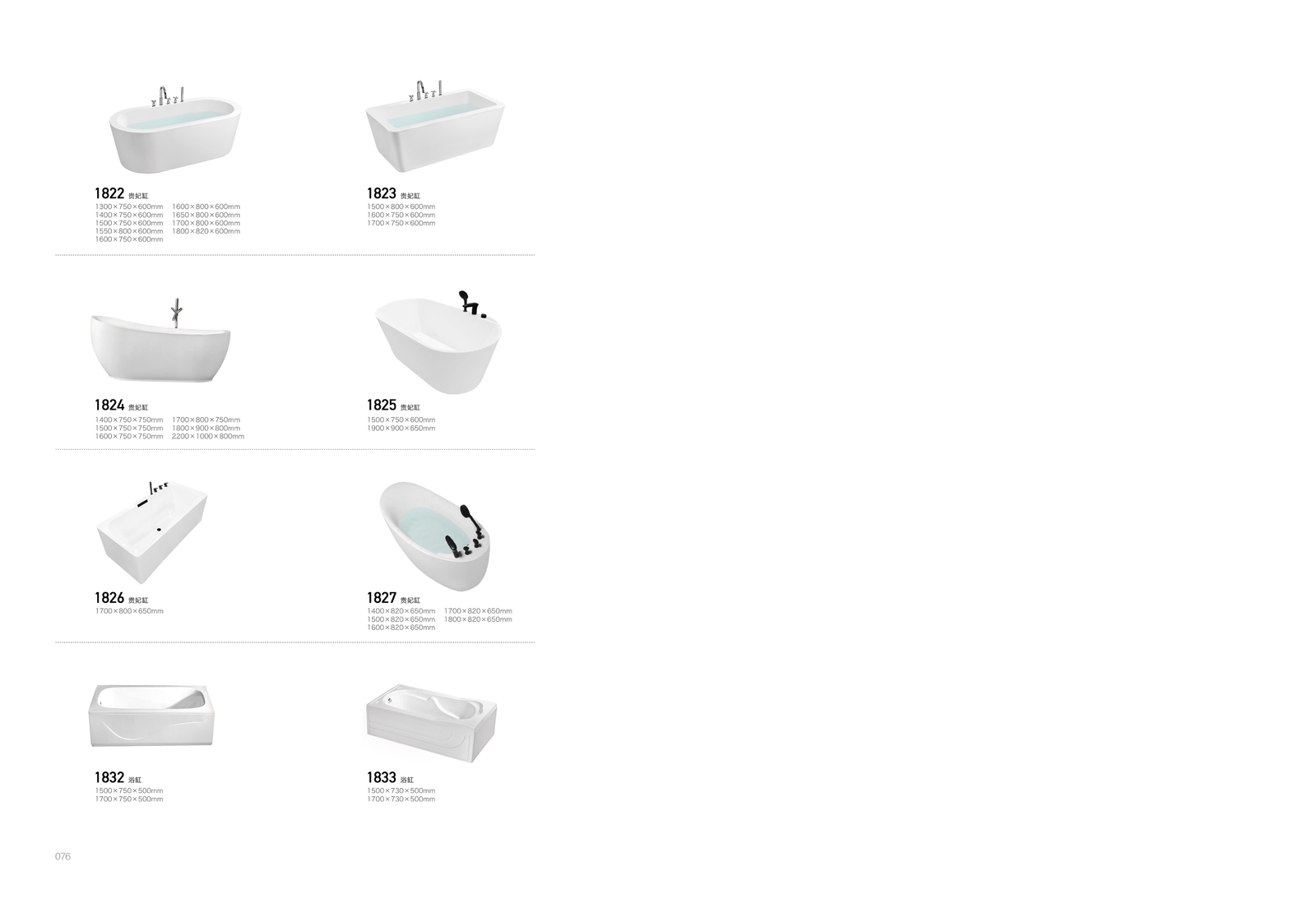

These bathtub model dimensions link each catalog reference to its printed sizes. The 9CREAT sheet shows oval and rectangular bath forms, plus two apron-front alternatives. It is a reference collection, not one bathtub with a single specification.

Bathtub model dimensions from the catalog

1822: rounded freestanding-style form; listed sizes include 1300 × 750 × 600 mm, 1600 × 800 × 600 mm and 1800 × 820 × 600 mm.

1823: rectangular outer form; the catalog lists 1500 × 800 × 600 mm, 1600 × 750 × 600 mm and 1700 × 750 × 600 mm.

1824: a raised-end profile; sizes include 1400 × 750 × 750 mm, 1700 × 800 × 750 mm and 2200 × 1000 × 800 mm.

1825: oval form; listed sizes are 1500 × 750 × 600 mm and 1900 × 900 × 650 mm. 1826: rectangular form, listed at 1700 × 800 × 650 mm.

1827: oval form; the catalog lists 1400, 1500, 1600, 1700 and 1800 mm lengths, each with 820 mm width and 650 mm height.

1832: apron-front alternative, listed at 1500 × 750 × 500 mm and 1700 × 750 × 500 mm. 1833: a separate apron-front reference, listed at 1500 × 730 × 500 mm and 1700 × 730 × 500 mm.

Keep the model and size together

First, choose a reference and one of its listed sizes. Then confirm the current drawing and available version. The examples above do not replace the drawing or establish internal dimensions, capacity or drain position.

Also confirm body material, reinforcement, support and waste connections. Several images show rim fittings, but the catalog does not define a supplied-parts list. State whether the order includes a bath, filler, waste kit or other accessories.

Quotation and installation checks

Check floor support, delivery access and space for plumbing maintenance with the installer. For apron-front references, request the mounting and access details instead of copying a freestanding bath installation.

Browse freestanding bathtub configurations or compare the oval bath room-setting reference. The bathtub and shower enclosure range covers separate items, not one bundled bathroom package.

Send the selected reference, quantity, destination and room drawing through the B2B quotation page. List required accessories separately. Confirm MOQ, production timing, package dimensions and shipping weight for the selected order.

For US accessible projects, ask the designer to review the US Access Board bathing-room guide against the installation plan. This resource does not certify the pictured product.

Bathtub model dimensions: buyer questions

Q: Does every reference have a 600 mm height?
A: No. Heights differ by model and size. For example, 1826 lists 650 mm, while the 1832 and 1833 alternatives list 500 mm.

Q: Can the catalog size confirm drain location?
A: No. Use the installation drawing for the selected model and size. Confirm the drain and supplied waste fittings before approving the order.
