Floor Drain Catalogue: Square and Linear Models

Categories: Bathroom Accessories

Product Selection & Project Quotation

Choose the model and configuration for your project. Send product codes, quantities, destination and installation drawings for a model-specific quotation.

Model Specifications: Confirm materials, dimensions and the required finish against the selected model and approved drawing.
Supplied Components: List the product, fittings and accessories included in the quotation; pictured items are not automatically one package.
Order Terms: Confirm MOQ, production timing and packing by model. OEM changes require separate confirmation.
Project Documentation: Request certification or test documents for the exact model, specification and destination where required.

Request a Model-Specific Quote
Send your model list and project requirements through the enquiry form below. Confirm the approved specification and supplied parts before ordering.

Wholesale Floor Drains

Wholesale floor drains in this collection cover 26 square and rectangular references. Compare diagonal slots, parallel openings, circular-pattern grates and inset-style covers before selecting a drain. Each design has its own model code; a similar cover does not establish the same outlet, body depth or supplied assembly.

Wholesale Floor Drains: Representative Comparison

6603E uses diagonal openings, while 6604E uses staggered horizontal slots and 6607E uses closely spaced parallel slots. In the next group, 6608E puts curved slots inside a circular inner area. 6609A and 6610A return to straight openings, whereas 6611A has an open geometric pattern. These differences help match the visible floor hardware without treating a grate pattern as a tested flow rating.

6605A and 6606E have flat inset-looking centres, with brighter and darker surfaces respectively. 6624 and 6625 show larger-looking versions of that cover arrangement. Meanwhile, 6612, 6613A, 6615A, 6617 and 6621–6623 use round inner patterns inside square frames. Select the appearance first, then request the actual cover construction and cleaning access.

6630 and 6631 show parallel-slot grates; 6632 has longer individual openings and 6633 has a grid pattern. 6634 and 6635 show rectangular inset-style covers. The catalogue lists multiple size labels for these families, so include both the code and the chosen size label in the order. A long cover does not prove a particular outlet position or a universal drain-body fit.

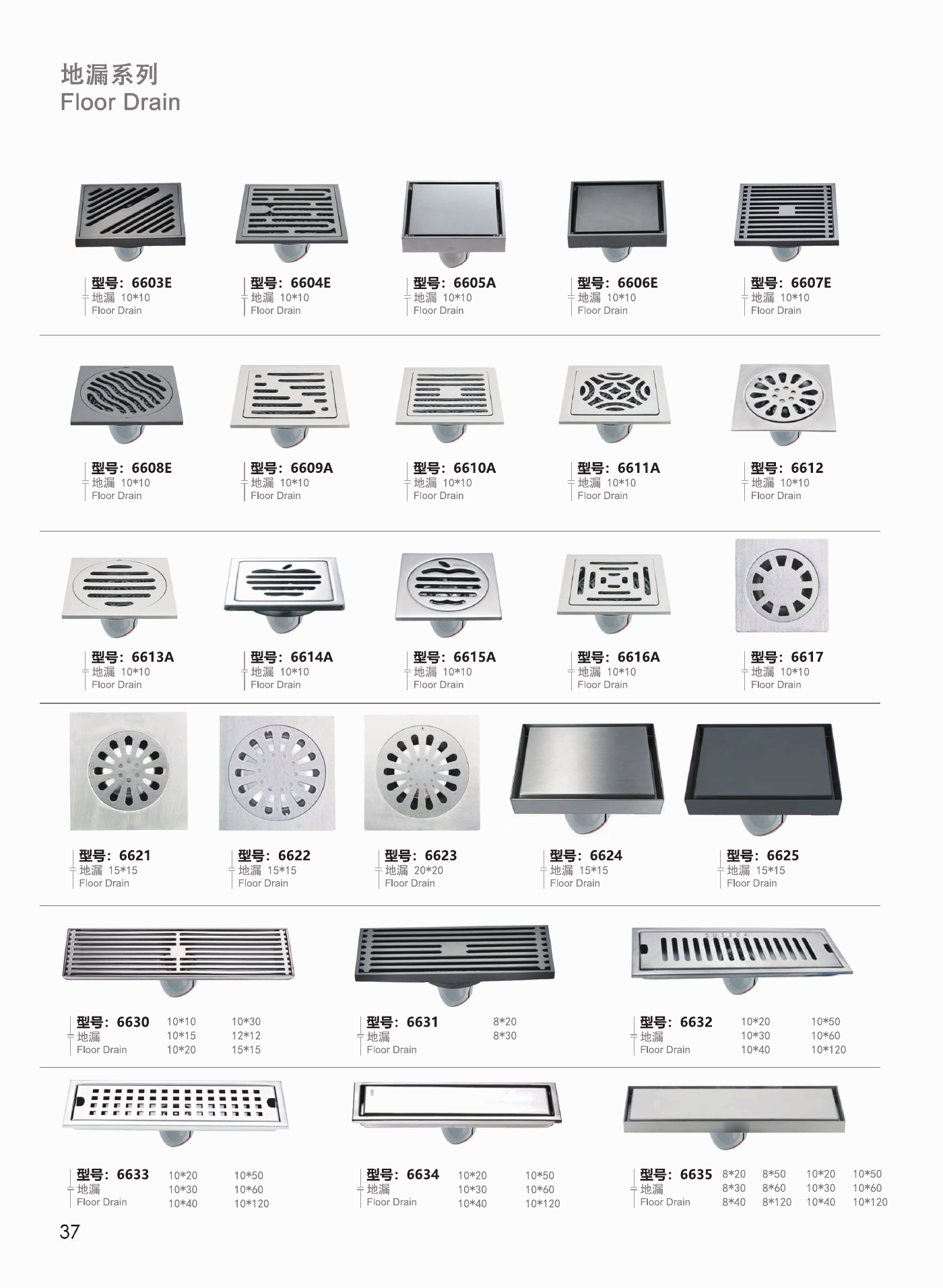

Complete Catalogue Model List

6603E, 6604E, 6605A, 6606E, 6607E, 6608E, 6609A, 6610A, 6611A, 6612, 6613A, 6614A, 6615A, 6616A, 6617, 6621, 6622, 6623, 6624, 6625, 6630, 6631, 6632, 6633, 6634, 6635.

Reference	Cover design and selection differences
6603E / 6604E	Square frames with diagonal versus staggered horizontal openings; compare cover pattern and the required body.
6605A / 6606E	Inset-looking square centres with brighter versus darker appearance; confirm construction and cleaning access.
6621 / 6623	Circular-pattern grates with 15 × 15 versus 20 × 20 catalogue labels; units and measured parts require confirmation.
6632 / 6633	Rectangular slotted versus grid-pattern covers; choose the exact listed size and outlet arrangement.
6634 / 6635	Rectangular inset-style centres; request the supplied cover, frame and body rather than assuming tile infill.

Wholesale Floor Drains: Installation and Parts

The square group carries 10 × 10, 15 × 15 or 20 × 20 labels according to the reference. For example, 6621 and 6622 show 15 × 15, while 6623 shows 20 × 20. The sheet does not state the unit or measured component. Therefore, retain those labels as catalogue options and obtain the dimensioned drawing before setting the floor opening.

For a shower floor, review the drain body together with the waterproofing system and finished floor build-up. Request the outlet diameter, orientation, installation depth and supplied sealing or fixing parts. Also confirm whether the quotation includes the cover, frame and body. An inset-looking cover is not enough to promise tile-infill installation or a particular waterproofing flange.

Keep these floor products separate from basin wastes and flexible connections in the angle valves and plumbing parts collection. A floor drain receives water at floor level; a basin waste connects through a fixture opening. Compare the required drawings rather than substituting one because both are called drains. For a wider fitting schedule, list the cover and its below-floor assembly as one selected configuration.

MOQ, Lead Time and Order Details

Request component materials and the finish sample for the exact ordered model. The current catalogue image does not define a common alloy grade, coating process, load class or tested drainage rate. Bright, brushed-looking and dark surfaces are visible selection cues, not evidence of 304 stainless steel or certification. Keep any required test report tied to the supplied version.

The VA plumbing design manual hosted by WBDG provides project-level guidance for design professionals. Use the requirements applicable to the destination and actual installation. It is not a product certificate or a substitute for a model drawing. Where flow, loading or waterproofing performance is specified, ask for evidence covering the ordered assembly.

To request a model-specific quotation, send the model, selected size label, finish, quantity and destination. Include the outlet and floor-build-up requirements where known. MOQ, lead time and packing need a drain-specific quotation; faucet terms do not automatically apply. Keep the approved cover image and parts list with each room schedule.

Buyer Questions

Are all wholesale floor drains one material grade?

No common grade is established by the current catalogue image. Request the component material schedule for the selected code and finish.

Can catalogue size labels be used as floor cutout dimensions?

No. Confirm the unit, measured component, body depth and opening on the selected-model drawing before installation.

Does an inset cover accept floor tiles?

The picture does not establish tile-infill construction. Confirm the cover design, drain body and waterproofing interface for the ordered version.
