Angle Valves and Plumbing Parts: 6000–6546

Categories: Faucets / Taps

Product Selection & Project Quotation

Choose the model and configuration for your project. Send product codes, quantities, destination and installation drawings for a model-specific quotation.

Model Specifications: Confirm materials, dimensions and the required finish against the selected model and approved drawing.
Supplied Components: List the product, fittings and accessories included in the quotation; pictured items are not automatically one package.
Order Terms: Confirm MOQ, production timing and packing by model. OEM changes require separate confirmation.
Project Documentation: Request certification or test documents for the exact model, specification and destination where required.

Request a Model-Specific Quote
Send your model list and project requirements through the enquiry form below. Confirm the approved specification and supplied parts before ordering.

Angle valves and plumbing parts cover separate supply, flushing and basin-waste connections. This collection lists 28 angle-valve codes plus 24 control, drain, rinser and hose references. Compare each component by its connection layout and intended role; these are distinct order lines, not one interchangeable installation kit.

Angle Valves and Plumbing Parts

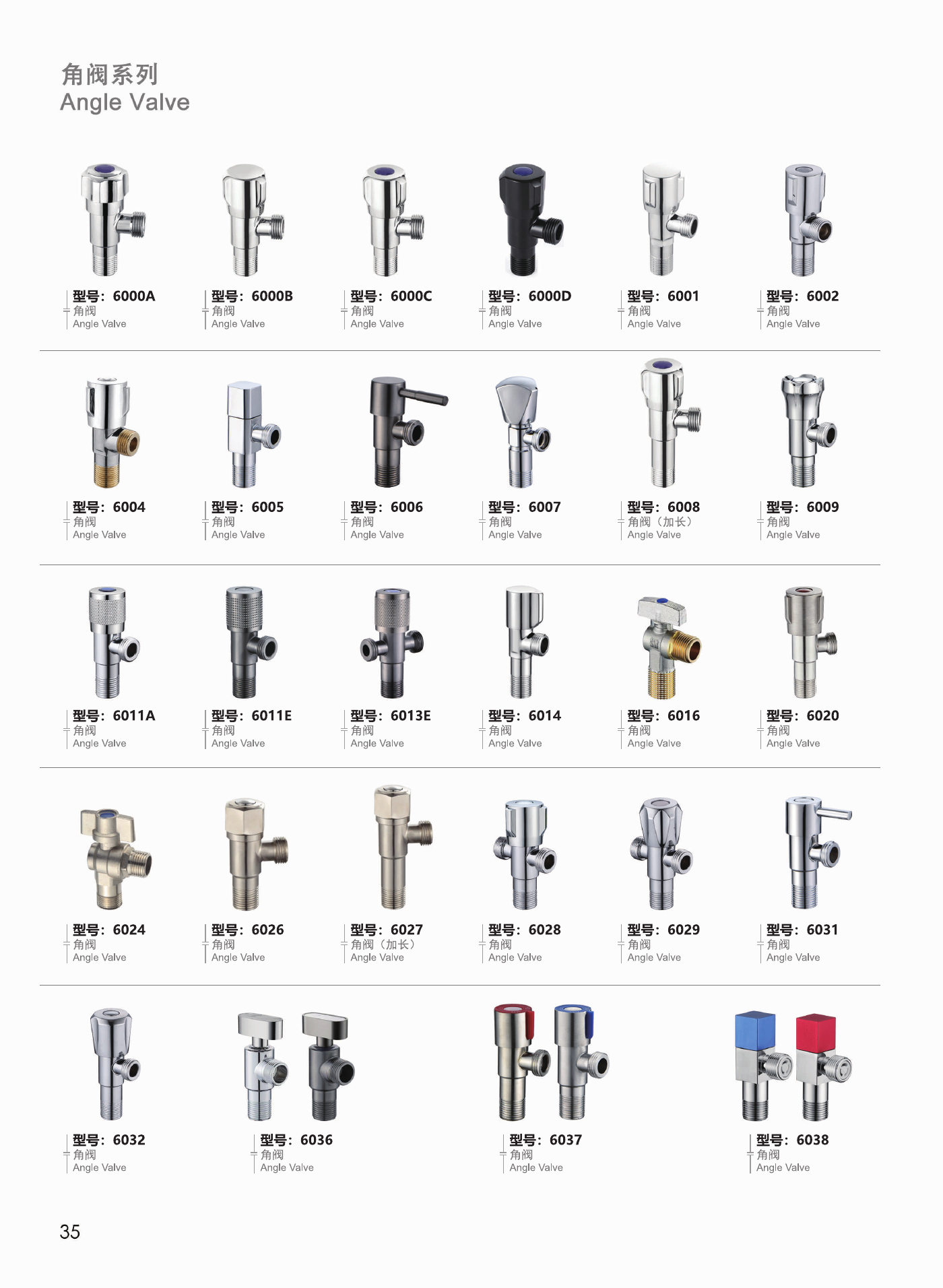

The angle-valve sheet compares cylindrical, square, textured and lever-shaped controls. 6005 has a square body, while 6006 and 6031 show slim horizontal levers. References 6008 and 6027 are labelled extended. 6013E and 6028 show three connection positions, so request their port diagrams rather than assuming the same layout as a two-connection angle stop.

Angle-valve model references: 6000A, 6000B, 6000C, 6000D, 6001, 6002, 6004, 6005, 6006, 6007, 6008, 6009, 6011A, 6011E, 6013E, 6014, 6016, 6020, 6024, 6026, 6027, 6028, 6029, 6031, 6032, 6036, 6037, 6038.

Compare Angle Valves and Plumbing Parts

The representative table keeps angle valves, a basin-waste fitting and a supply hose on separate lines. 6000A/B/C/D, 6011A/E and the later control shapes retain distinct catalogue codes. The pictured finish does not establish alloy, cartridge construction, rotation angle, pressure rating or a certification scope.

Representative reference	Design and purchasing differences
6005	Square angle-valve body and rectangular control. Confirm component materials and inlet/outlet threads.
6008 / 6027	Catalogue-labelled extended forms. Request the projection and available wall clearance on the selected drawing.
6013E / 6028	Three visible connection positions; request the port diagram and operating instructions.
6504A / 6504B	Basin-waste fitting with a visible side opening; match the basin overflow, seals and outlet specification.
6545 / 6546	Braided hose configurations with different pictured ends; confirm length and both connections in the quotation.

Flush Controls, Basin Wastes, Rinsers and Hoses

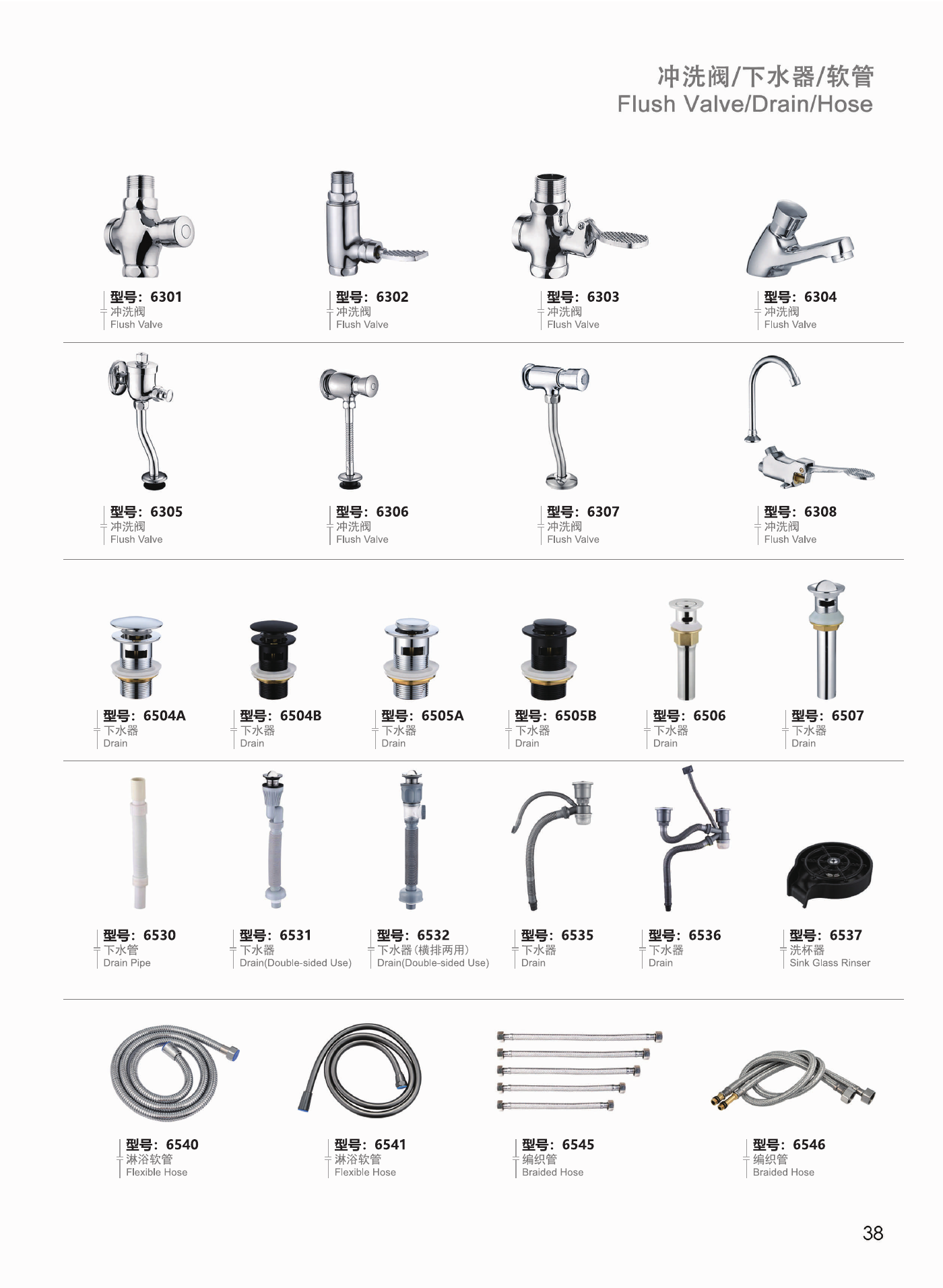

The second sheet includes 6301–6308 control and outlet configurations, 6504A/B and 6505A/B waste fittings, plus 6506 and 6507. References 6530–6536 show different pipe or drain-assembly layouts, while 6537 is a sink glass rinser. Hoses 6540/6541 and 6545/6546 have different pictured ends; confirm ordered length, bore, threads and operating conditions separately.

Control, waste, rinser and hose references: 6301, 6302, 6303, 6304, 6305, 6306, 6307, 6308, 6504A, 6504B, 6505A, 6505B, 6506, 6507, 6530, 6531, 6532, 6535, 6536, 6537, 6540, 6541, 6545, 6546.

Angle-Valve Catalogue: 6000 to 6038 References

Angle Valves and Plumbing Parts: Connection Checks

Match valve inlet and outlet threads to the wall connection and fixture hose. For a basin waste, check the waste opening, overflow arrangement and required outlet before choosing a drain body. Compare the ceramic basin collection to identify the intended fixture. Specify whether the order includes the waste fitting alone or its downstream drain assembly; matching colour does not establish installation compatibility.

Coordinate the Basin and Supply Lines

For supply components in a drinking-water project, use NSF’s certified-component search when checking a supplier’s certification claim. These listings are a verification resource, not a certification claim for these catalogue parts. Include the destination market and requested documents in the inquiry. Ask for certificates or test reports that identify the exact model and covered material scope.

For supply connections, compare the basin mixer taps and identify their inlet-hose threads before choosing an angle valve.
For handheld toilet outlets, review bidet sprayer kits and list the required valve or hose separately.
For a broader hardware order, use the faucets and taps collection while keeping supply, waste and flushing components on distinct order lines.

Plumbing Parts: Ordering Questions

Q: Does the control shape of angle valves and plumbing parts prove quarter-turn ceramic operation?

A: No. The sheet shows external control shapes, not the internal cartridge or rotation angle. Request the selected valve’s operating description. Also identify whether the order needs an extended body or multiple outlets, because those visible differences affect the connection layout.

Q: Can one basin-waste fitting serve every basin?

A: Match the waste fitting to the basin opening and overflow arrangement, then check the outlet and seals. Confirm the selected component materials, supplied parts and connections. MOQ, packing and production timing for these separate plumbing parts require a model-specific quotation; the faucet order terms do not automatically apply. Send model codes and quantities through the plumbing-parts quotation page.
