Wholesale Sensor Faucets And Flush Controls

Wholesale sensor faucets and flush controls in this collection cover eight basin taps and eight flushing-control or tank references. The two images separate the faucet group from the flushing components. Choose the required function before comparing body shapes: a sensor faceplate is not a ceramic urinal, and a flush tank is not a basin tap.

Wholesale Sensor Faucets And Flush Controls: Representative Comparison

3002 uses a curved body above a broad base plate. 3003 has a cylindrical stem and a flatter projecting outlet, while 3004 has a taller cylindrical outline with a short spout. 3005 changes to an angular upper outlet. The small side controls visible on 3004 and 3005 need their own function specification; the image does not establish their temperature-control range.

3006 and 3009 have square body profiles, whereas 3007 and 3008 use cylindrical stems beneath angular outlets. The dark front windows appear at different heights and have different shapes. These details help identify the selected reference. However, a window size does not establish detection distance, response time, shut-off timing or electrical consumption.

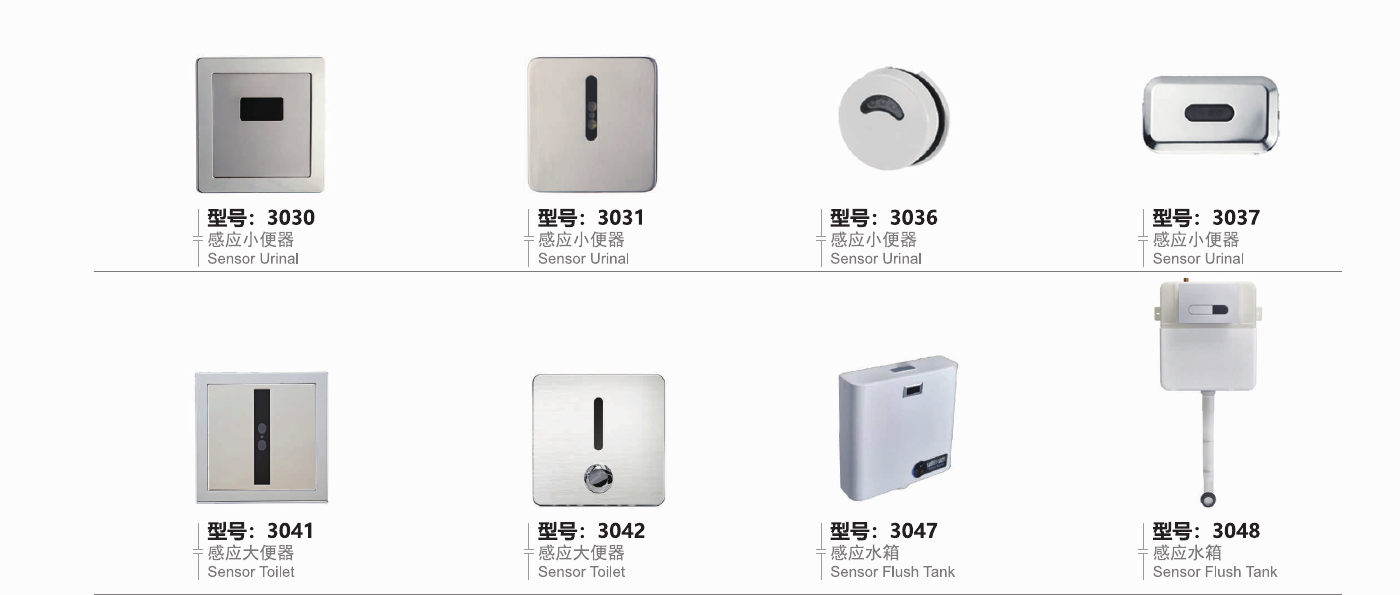

3030 and 3031 show square urinal-control plates; 3036 uses round trim and 3037 a horizontal rectangular face. 3041 and 3042 are listed as toilet controls, while 3047 and 3048 are flush-tank references. 3048 has a long vertical outlet pipe. Keep these groups on separate procurement lines rather than treating the eight references as alternative faucet bodies.

Complete Catalogue Model List

3002, 3003, 3004, 3005, 3006, 3007, 3008, 3009, 3030, 3031, 3036, 3037, 3041, 3042, 3047, 3048.

Wholesale Sensor Faucets And Flush Controls: Installation and Parts

For the basin group, compare the actual spout reach, mounting hole, underside clearance and hand-washing space. The manual basin mixer collection provides a separate control option. Match the chosen sensor tap to the basin drawing; do not assume that the same body height works with every basin rim and deck.

For flushing components, request the intended fixture type, mounting space, water route and supplied valve or connectors. A control face alone does not show all concealed hardware. For replacement work, provide existing fitting photographs and dimensions. The urinal-control and toilet-control labels describe different selections, not proof of universal compatibility with any ceramic fixture.

Confirm the required power arrangement by exact code. The current price-free image does not state AC or DC options, supply voltage, battery format or included adapters. Likewise, it does not establish a shared body alloy, material grade or certification. Request the actual electrical specification and component schedule before approving a working installation.

MOQ, Lead Time and Order Details

Faucet orders start at 200 pieces per style, with typical production lead time of 20–35 days. Standard packing uses kraft paper boxes and EPE pearl-foam cushioning, adjusted to customer requirements. These confirmed faucet terms apply to the basin-tap group; flush controls, tanks and separately supplied electrical components need their own quotation.

For washroom planning, review the EPA commercial-building water-efficiency guidance. It is external planning information, not a WaterSense listing or a water-savings claim for these models. Define any required performance evidence for the exact ordered unit. The dryer models elsewhere on the source sheet are not included in this faucet and flushing selection.

To request a model-specific quotation, send the complete code, function, quantity, destination and mounting drawing. Identify the requested power supply, valve, connectors and fixing parts separately. Keep the approved model image and supplied-parts schedule with the order so a similar-looking panel is not accepted as a replacement without checking its connections.

Buyer Questions

Do wholesale sensor faucets and flush controls share one power supply?

No common power specification is established by the current image. Confirm supply type, voltage, adapters or batteries and included electrical parts by exact code.

Are hand dryers included in this selection?

No. This page contains basin taps, flushing controls and tanks. The four dryer references have a separate washroom hand dryer and hair dryer selection; confirm their electrical specifications independently.

Which MOQ and lead time apply?

The basin faucet MOQ is 200 pieces per style, with typical lead time of 20–35 days. Flush controls, tanks and separate components require their own quotation.
