Angular Riser Shower Sets

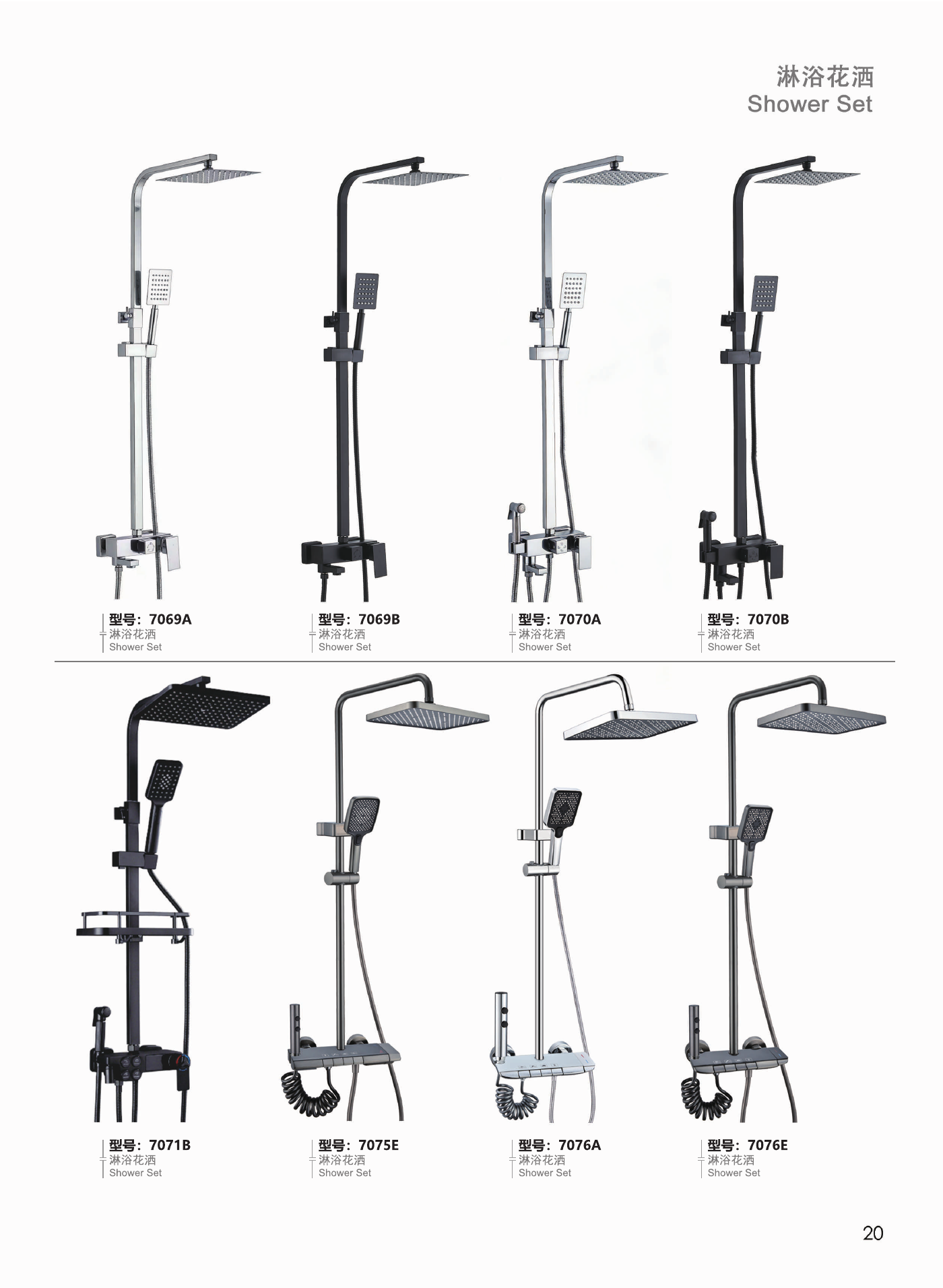

Angular riser shower sets 7069A/B, 7070A/B and 7071B use a flat-profile upright and straight-edged overhead arrangement. The same eight-reference sheet includes 7075E and 7076A/E with round-looking riser tubes. Compare those profiles along with the auxiliary spray, lower controls and the basket pictured on 7071B.

Angular Riser Shower Sets: Representative Comparison

7069A and 7069B pair a square head with a rectangular handset and compact side-lever mixer. No separate auxiliary spray is pictured. 7070A and 7070B retain the angular riser and square head, but add a side spray attachment. These are different component packages, not just alternative colour codes.

7071B has a dark angular upright, a square head and a visible storage basket across the riser. Its lower body has a different control arrangement and an auxiliary spray beside it. The basket changes the space to review, but the photograph does not provide a storage load rating or mounting dimensions.

7075E and 7076A/E use bent, round-looking riser tubes with square heads. Their broad lower bodies and auxiliary sprays create a different outline from 7069. Compare the handset faces and front control sections as well: a similar overall assembly does not establish interchangeable mixers or the same outlet operation.

Complete Catalogue Model List

7069A, 7069B, 7070A, 7070B, 7071B, 7075E, 7076A, 7076E.

Angular Riser Shower Sets: Installation and Parts

Check the angular upper arm against the enclosure and intended head position. Obtain the riser bracket locations, inlet spacing and connection threads from the chosen drawing. For a retrofit, check both the lower water connections and upper fixing rather than assuming that an exposed set will fit existing pipework.

For 7071B, include basket clearance in the room elevation and request its fitting instructions. For spray-equipped references, identify the attachment, hose and holder separately. The basket and the extra spray should be explicit parts of the quotation, not assumed additions based on a neighbouring model.

Compare other segmented-control shower sets or the broader exposed shower system selection. Request a component material schedule and finish sample for the selected reference. Specify any required display or electronic function with its technical sheet; neither the dark finish nor the control outline establishes a power source.

MOQ, Lead Time and Order Details

MOQ, production lead time and packaging depend on the selected shower configuration and quotation. Send the full model code, quantity, finish reference and destination. Request packed dimensions and gross weight for the agreed kit, rather than applying a separate faucet-series order minimum or delivery schedule.

For project planning, consult the VA Plumbing Design Manual alongside local requirements. This reference does not certify these products or establish their performance. Request any required test reports and compliance documents for the specific ordered model and version.

To request a model-specific quotation, attach the model image and installation drawing, then list the required supplied parts. Confirm controls, finishes and spare parts before sample approval. Keep that agreed specification with the purchase order so a similar-looking head, hose or mixer does not become an assumed substitute.

Buyer Questions

Which angular riser shower sets include a basket?

7071B shows a basket across the riser. Confirm its inclusion, fittings and use instructions; the catalogue gives no load rating.

Are all eight risers angular?

No. 7069A/B, 7070A/B and 7071B show angular profiles. 7075E and 7076A/E provide round-riser comparisons.

Do these sets have hydro-powered LED controls?

The pictured configuration does not establish that function. Any display, power source or electronic requirement needs a model-specific technical sheet.
