T4P Compact Smart Toilet: P-Trap & Version Options

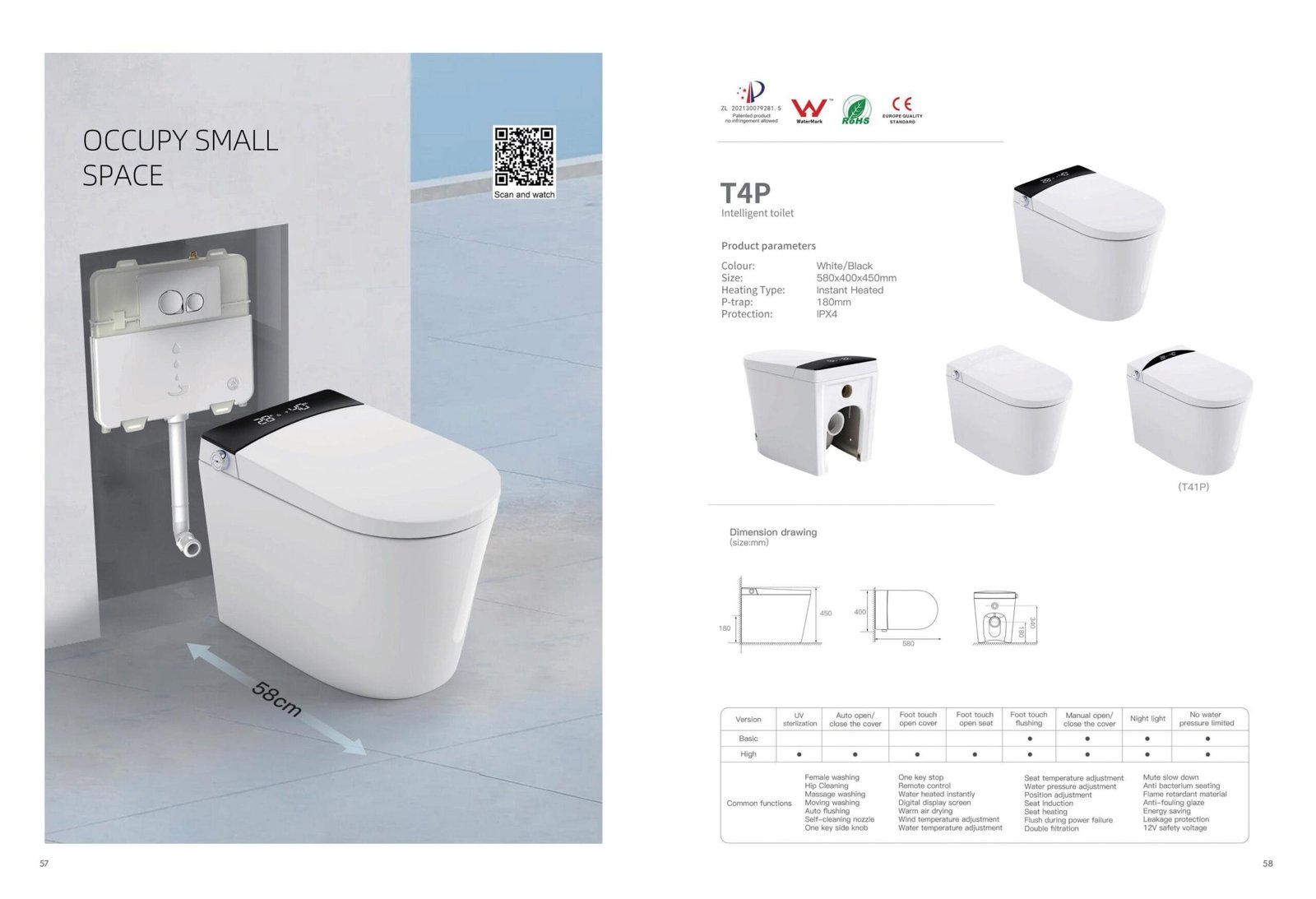

The T4P compact smart toilet has a floor-standing body, rounded lid and side control knob. Its catalog dimensions are 580 × 400 × 450 mm, with a P-trap reference of 180 mm. Compare Basic and High versions, then confirm the installation drawing and cistern supply. The body rests on the floor; a rear P-trap and concealed cistern do not make it wall-hung.

T4P compact smart toilet: features by configuration

1. Short-projection body and installation drawing

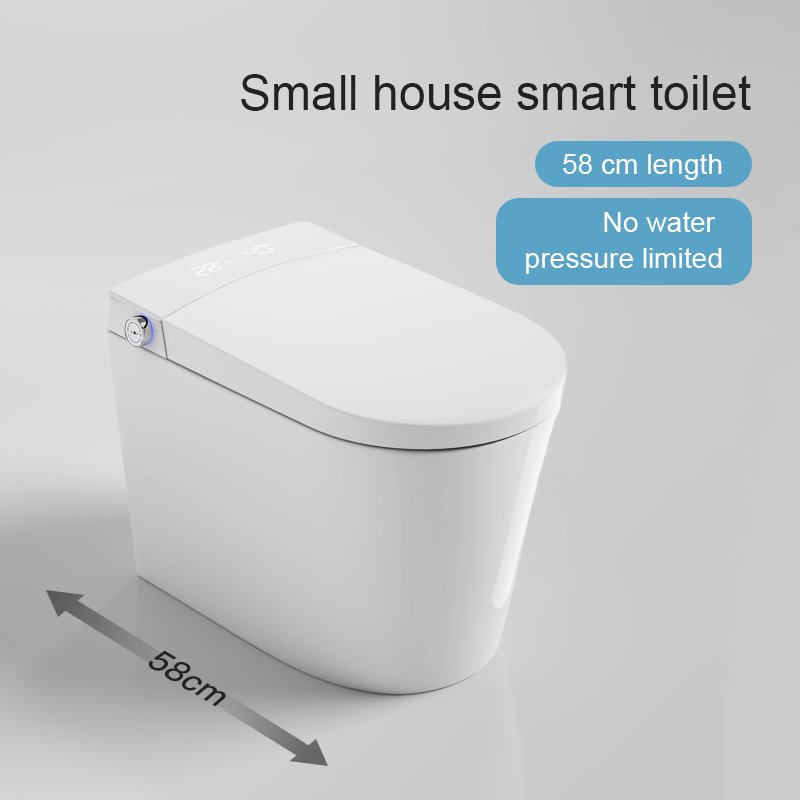

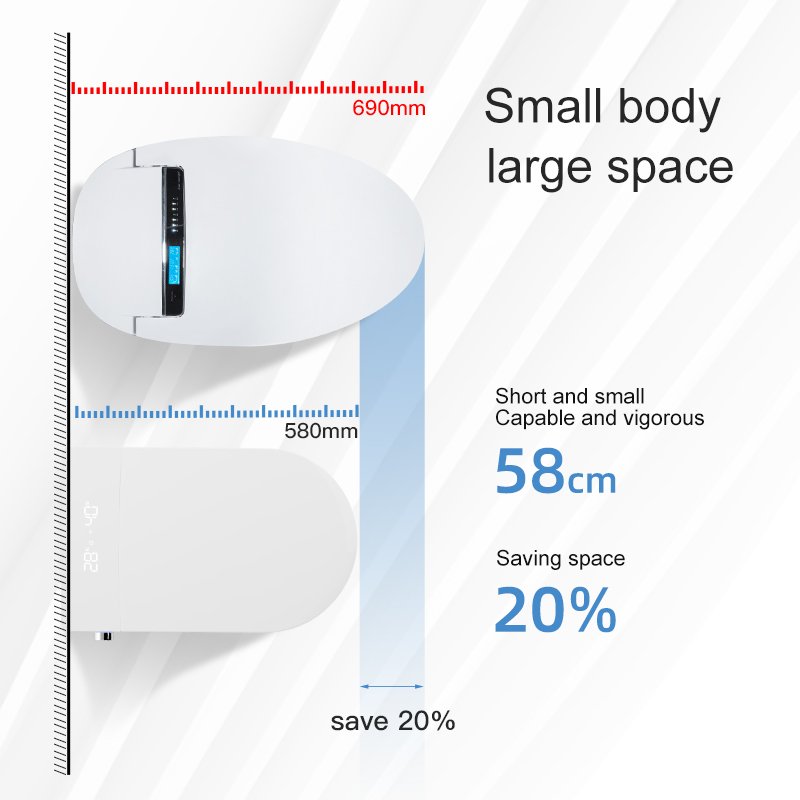

• 580 mm projection: check the room layout, fixing points and pipe access against the installation drawing.

• Concealed cistern reference: the catalog shows a separate rear cistern connection; confirm whether the order includes it.

2. Basic and High opening controls

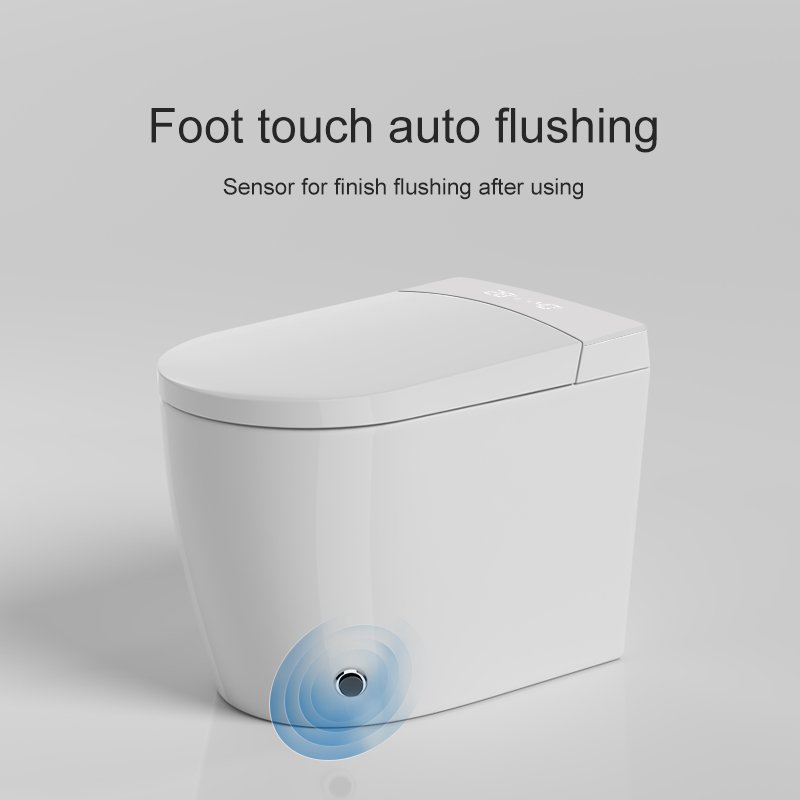

• Foot-touch flushing: both Basic and High mark this function. Confirm the supplied controls.

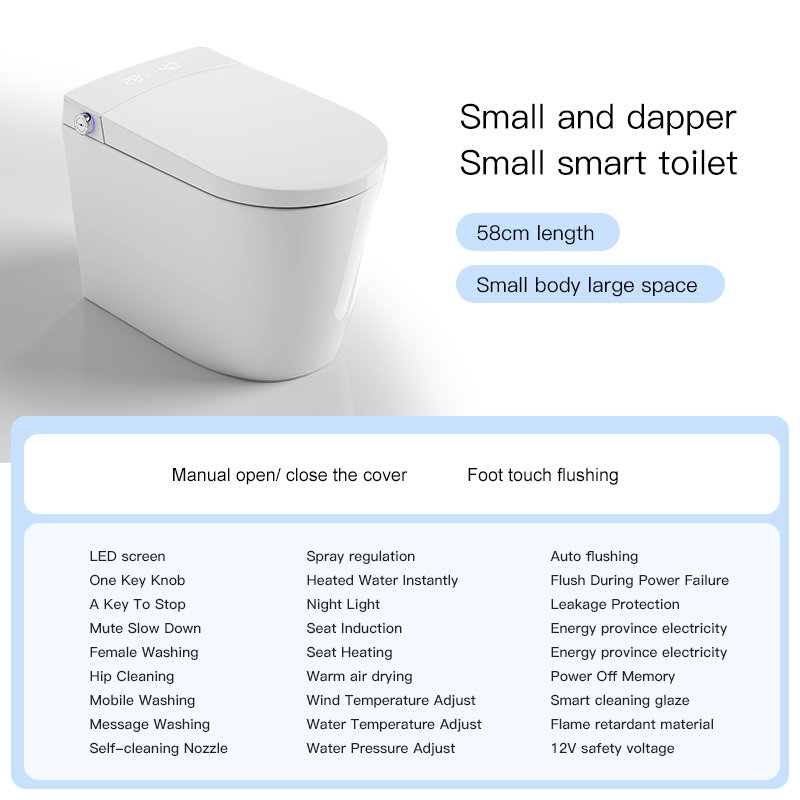

• Automatic flushing and seat sensing appear in the common-function list; confirm operation in the selected version.

• Side knob, display and one-key stop appear in the sheet; confirm the supplied remote and control layout.

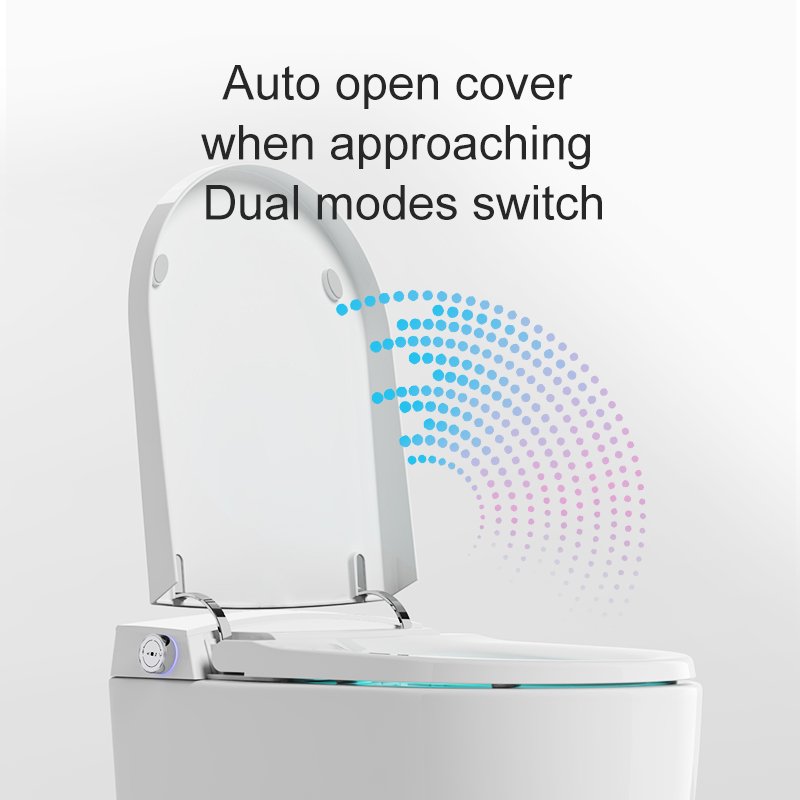

• Lid controls: Basic uses manual opening. High adds automatic lid opening and foot-touch lid/seat controls.

3. Washing and nozzle adjustments

• Rear, feminine, moving and massage washing appear in the common-function list; confirm nozzle settings and modes.

• Instant water heating: confirm water-temperature and pressure settings for the supplied version.

• Nozzle cleaning: the sheet lists self-cleaning; it does not establish a sanitation or sterilization result.

4. Heating, drying and lighting

• Heated seating: confirm adjustment settings and supplied controls.

• Warm-air drying: confirm air-temperature settings and the selected feature list.

• Night lighting appears in both configuration rows; approve the lighting reference with the sample.

5. Electrical specification and supporting documents

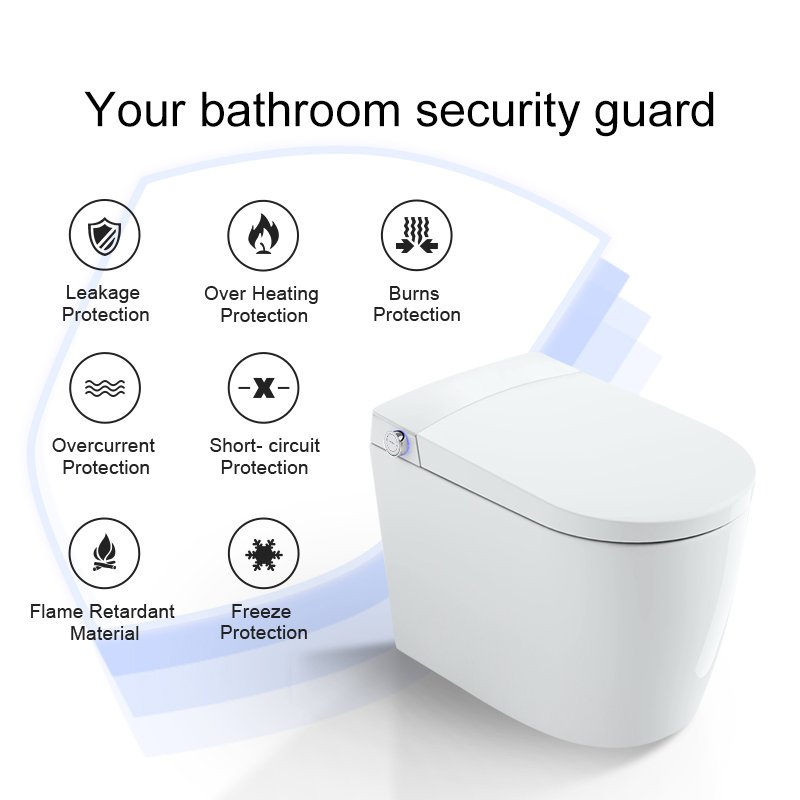

• Electrical labels: request the model-specific report, mains voltage and plug specification rather than treating graphic symbols as certification.

• Outage flushing: the catalog lists the function, but does not identify the backup mechanism or included battery. Confirm those details.

• Glazed body: follow the supplied care instructions and confirm surface requirements; no stain-free guarantee is established.

• Energy-saving reference: no measured electricity or water-consumption figure is supplied by the image.

T4P compact smart toilet: B2B supply and packing

MOQ is 20 units. Production takes 30–45 days after deposit confirmation, excluding transport. The confirmed table lists 38.7 kg body net weight, 42.2 kg main-carton gross weight and 66 × 45 × 57 cm carton dimensions. Confirm any separate cistern and accessory packing in the quotation.

Please enable JavaScript in your browser to complete this form.

Name *

Email *

Whatsapp

Information Request Email

Request Information

Get a quote

The T4P compact smart toilet table marks UV and automatic opening for High only. A UV label is not evidence of a medical or sterilization result. The T41P appearance also appears on the sheet; confirm the purchased model code rather than treating all pictured lids as T4P.

Packing uses a five-layer corrugated carton. Confirm the foam layout: the supplied table excludes full-surround foam protection for T4P. Main-carton data does not include a separate concealed cistern, pallet or wooden case.

Q: Is T4P a wall-hung smart toilet?
The catalog illustrates a floor-standing body with a rear P-trap connection and concealed cistern. Do not use a wall-hung mounting assumption; confirm the installation drawing.

Q: Does Basic include automatic lid opening?
No. Basic marks manual opening and foot-touch flushing. High adds automatic opening, foot-touch lid/seat controls and a UV reference.

Compare the smart toilet range and washing-equipped bidet configurations. Send the version, quantity, drain drawing and destination through the quotation contact page. WhatsApp: +8617706399903.

For water-efficiency information, see EPA WaterSense toilet guidance. This reference does not certify either model.

A 250 mm S-trap can be customized for floor-outlet toilet configurations. Specify the floor-outlet version and request its installation drawing. This does not change the catalog-listed P-trap or wall-hung configuration; confirm the exact model and supplied components. Mains voltage and power plug can be customized for the destination. Send the destination country, required voltage and plug reference with the RFQ. Confirm the selected electrical configuration and applicable model-specific documents before ordering. Plug selection does not establish certification for every version.
