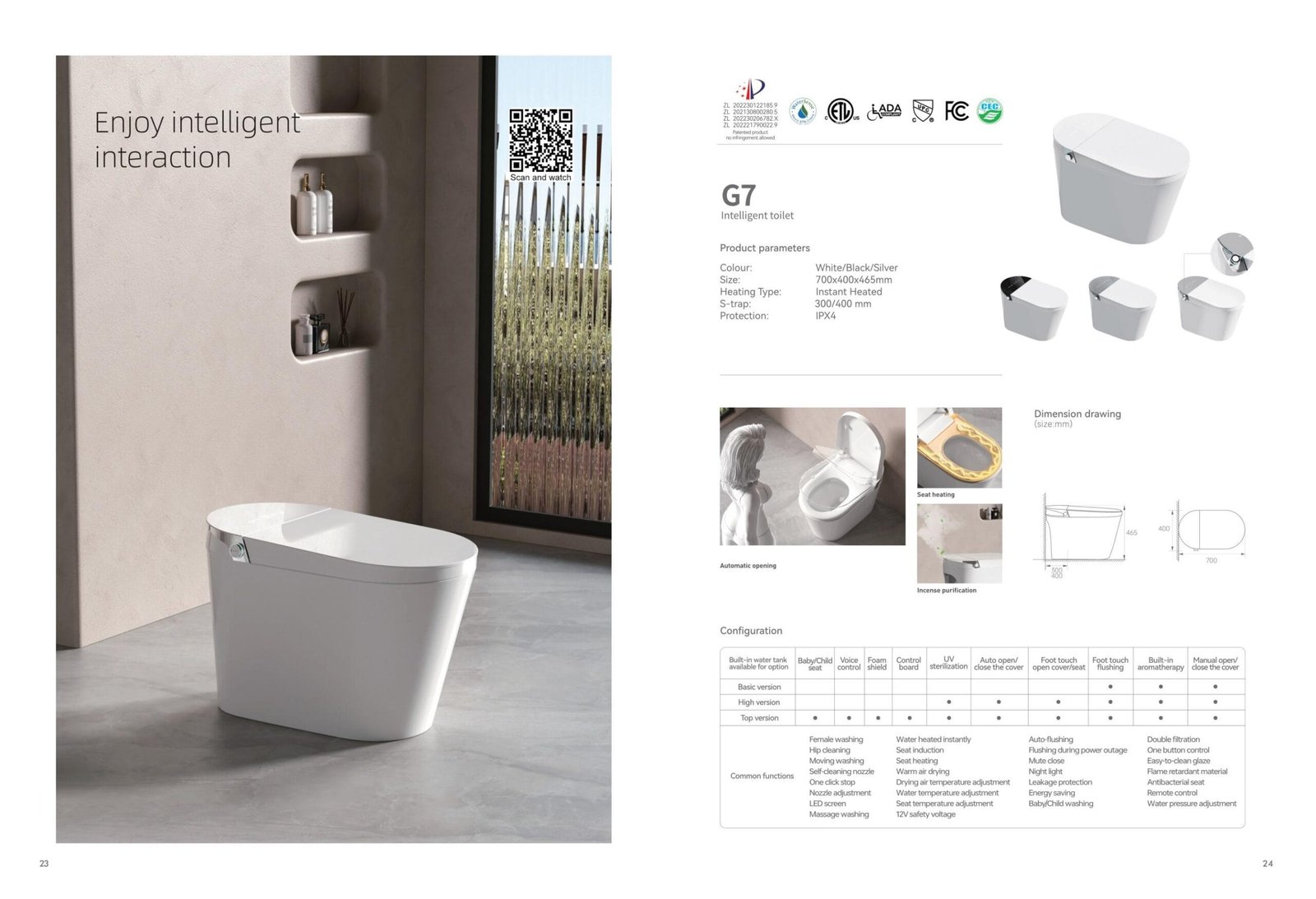

G7 Smart Toilet: Finishes and Version Selection

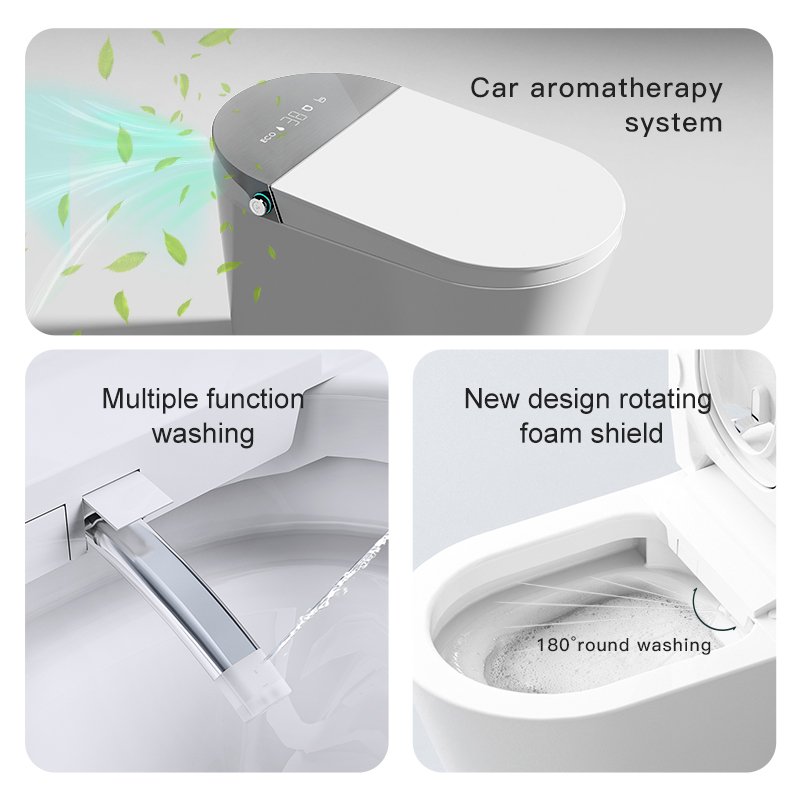

Basic marks manual lid operation, foot-touch flushing and aromatherapy. High adds UV, automatic lid operation and foot-touch lid/seat opening.

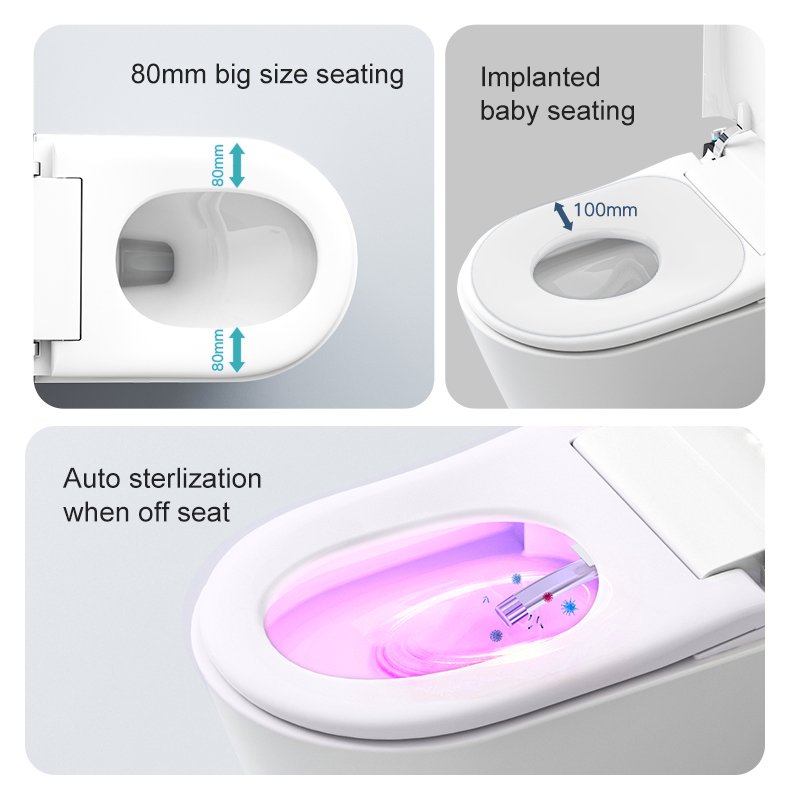

Top also marks the child seat, voice, foam and external control board. Confirm the supplied version, not every function pictured.
Control References by Version

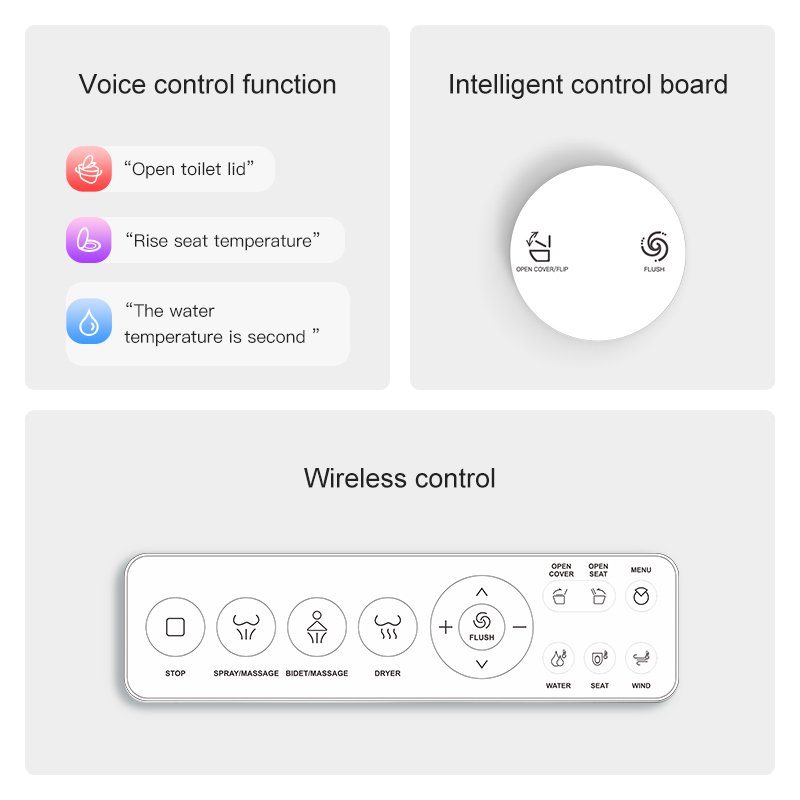

Lid, Voice and Remote Controls
- Voice: marked for Top. Confirm language and commands on the sample.
- Automatic lid operation: marked for High and Top.
- Foot-touch flushing: marked across Basic, High and Top.
Tank, Dimensions and Finish Checks
A 250 mm S-trap floor-outlet version can be customized for this toilet series. This is an order-specific option, not the default for every version. Other catalog-listed outlet options remain available; specify one outlet and approve its installation drawing before production.
Mains voltage and power plug can be customized for the destination. Send the destination country, required voltage and plug reference with the RFQ. Confirm the selected electrical configuration and applicable model-specific documents before ordering. Plug selection does not establish certification for every version.
- Built-in tank optional. Confirm the tested inlet range and supplied water paths.
- Compare the white, black and silver catalog finishes with an approved sample; the image does not establish a surface-coating material.
B2B Supply and Order Checks

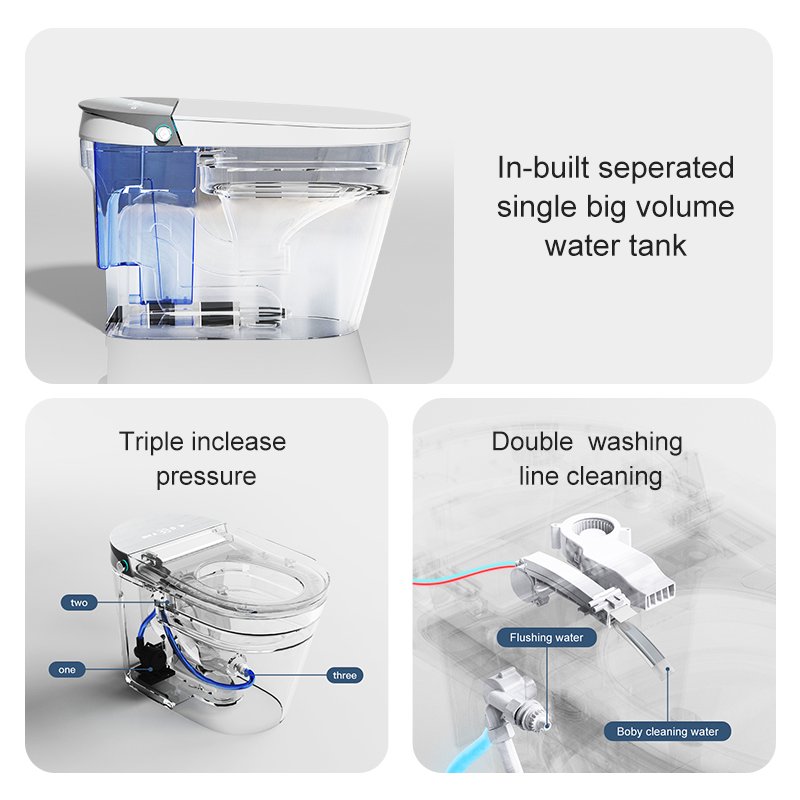

The illustrated tank and water paths are configuration references. The main matrix labels the built-in tank as optional. Confirm the ordered tank and tested inlet range. A cutaway does not prove unlimited performance at zero inlet pressure.
Certified and non-certified configurations are sold separately. Specify the exact purchased model and required destination approval; check current documents rather than treating catalog logos as approval of every version.
MOQ is 20 units. Production takes 30–45 days after deposit confirmation, excluding transport. Packing uses a five-layer corrugated carton with foam protection. Confirm the ordered accessories and any extra pallet or wooden-case packing.
The approved packing table lists 42.2 kg body net weight, 46.2 kg main-carton gross weight and 76 × 48 × 58 cm carton dimensions. Confirm separate tank, accessories, pallet and wooden-case packing; these are main-carton figures.
