Concealed Hand Shower Sets

Concealed hand shower sets 7215–7218 combine a wall control with a handset and hose, without an overhead head in the pictured configuration. The eight references offer square or round trim and fixed-holder or slide-rail arrangements. This makes the collection distinct from a concealed rain-shower package with an additional ceiling or wall-arm head.

Concealed Hand Shower Sets: Representative Comparison

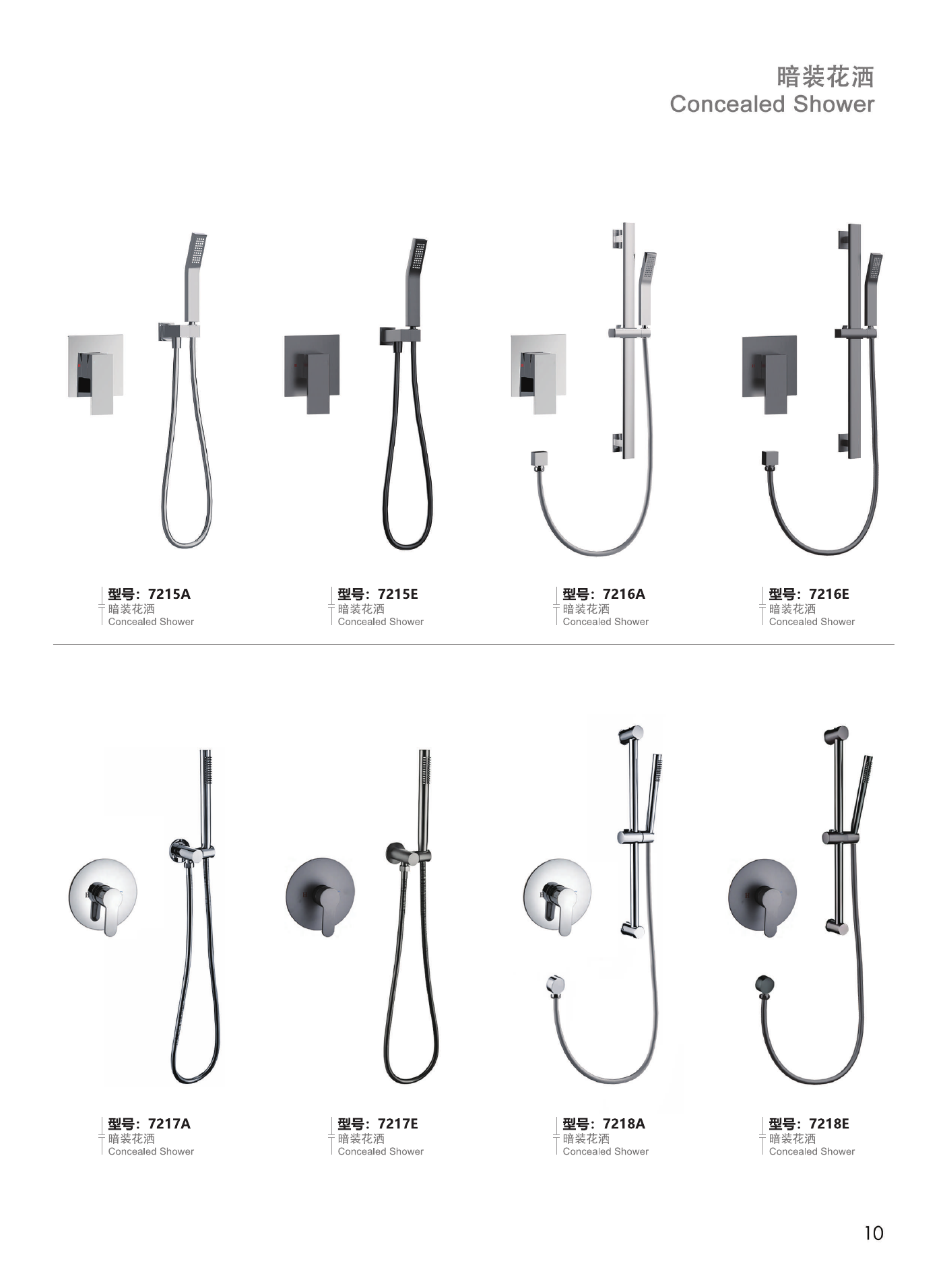

7215A and 7215E show a square control plate and a narrow rectangular hand shower on a compact wall holder. By comparison, 7216A/E retain the square trim direction but add a vertical slide rail and a separate-looking wall hose connection. The extra mounting points need space on the wall elevation.

7217A and 7217E use round control trim with a slim cylindrical-looking handset and a compact holder. In contrast, 7218A/E pair the round trim with a vertical rail. Therefore, select the trim geometry and holder arrangement as separate purchasing decisions rather than treating all eight references as finish-only alternatives.

A slide rail changes the visible assembly and where the handset holder sits. However, the image does not provide the travel range, overall rail length or bracket adjustment limits. For a refurbishment, check the mounting drawing against the existing wall holes instead of assuming the rail will cover every previous fixing position.

Complete Catalogue Model List

7215A, 7215E, 7216A, 7216E, 7217A, 7217E, 7218A, 7218E.

Concealed Hand Shower Sets: Installation Review

Confirm the concealed valve depth, finished-wall thickness, supply threads and hose connection before installation. Also check the holder or rail position against the intended use area. No numeric dimensions or pressure limits appear on the source sheet. Obtain the selected drawing and supplied-parts list for the complete reference.

The catalogue does not establish a thermostatic cartridge, LED display, hydro-powered function or an included overhead head. Nor does a compact handset prove a particular spray mode. Request any required operating or compliance evidence for the ordered model; do not transfer claims from an older 8236-series product page.

For a package that includes an overhead head, compare the concealed shower collection. For visible mixer alternatives, review hand shower and rail configurations. The VA plumbing design manual provides design context, not certification of these fittings or approval for a particular installation.

MOQ, Lead Time and Order Details

Send the chosen code, quantity, destination and wall layout through the quotation enquiry page. Confirm shower MOQ, lead time and packing in the quotation. In addition, list the valve body, trim, handset, hose, wall connection and holder or rail separately so the supplied package matches the approved sample.

Concealed Hand Shower Sets: Buyer Questions

Is an overhead shower included in the picture?

No. These catalogue references show a control, handset and hose with a holder or rail. Request a different configuration if an overhead head is required.

Which versions use a slide rail?

7216A/E and 7218A/E show vertical rails. The 7215A/E and 7217A/E layouts show compact holders instead.

Can the rail reuse existing fixing holes?

The photograph cannot confirm that. Compare the selected rail drawing and bracket positions with the existing wall before placing the order.
