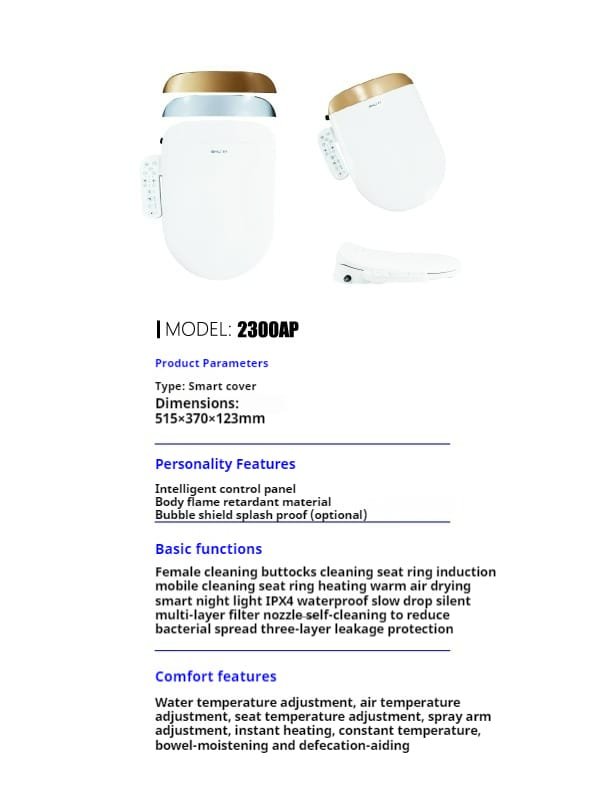

2300AP bidet toilet seat catalog showing side control panel and 515 × 370 × 123 mm dimensions

2300AP Bidet Toilet Seat: Side Controls

Categories: Electronic Bidet Toilet Cover

Product Selection & Project Quotation

Choose the model and configuration for your project. Send product codes, quantities, destination and installation drawings for a model-specific quotation.

Model Specifications: Confirm materials, dimensions and the required finish against the selected model and approved drawing.
Supplied Components: List the product, fittings and accessories included in the quotation; pictured items are not automatically one package.
Order Terms: Confirm MOQ, production timing and packing by model. OEM changes require separate confirmation.
Project Documentation: Request certification or test documents for the exact model, specification and destination where required.

Request a Model-Specific Quote
Send your model list and project requirements through the enquiry form below. Confirm the approved specification and supplied parts before ordering.

2300AP Bidet Toilet Seat: Side Controls

2300AP bidet toilet seat is an electronic seat and lid assembly for B2B bathroom sourcing. The catalog shows a white seat with an attached side panel and contrasting rear trim options. The 2300AP reference also identifies a bubble-shield splash feature as optional, rather than part of every supplied unit.

2300AP bidet toilet seat specifications

The catalog gives overall dimensions of 515 × 370 × 123 mm. These are product dimensions, not shipping-carton dimensions. Use the illustrated outline as a reference, not proof of universal bowl compatibility.

The listed functions include front and rear washing, oscillating wash, seat sensing, seat heating, warm air drying, a night light and nozzle self-cleaning. Adjustable water, air and seat temperatures appear in the comfort section. Specify the trim finish and optional splash feature separately so the quotation matches the intended version.

Fit and order checks

First, send the ceramic bowl drawing and mounting-hole spacing. Check rear clearance and access to the water connection. Also confirm the rated voltage, frequency, plug type and permitted water pressure for the destination market.

For bulk orders, list quantity, required functions, supplied fittings and the approved finish. Request the model-specific MOQ, production lead time, carton dimensions and gross weight in the quotation. A complete smart toilet uses a different packing and supply arrangement.

The catalog includes protection claims, but it does not replace model-specific test documents. Request the applicable evidence before publishing a rating or compliance statement. For UK projects, consult Electrical Safety First bathroom guidance and the project electrician.

2300AP bidet toilet seat questions

Q: Is the bubble-shield feature standard on 2300AP?
No. The catalog marks it as optional. Request it explicitly and confirm its inclusion in the approved sample and quotation.

Q: What is needed for a 2300AP quotation?
Send the bowl drawing, destination market, quantity and required function list. Include the electrical specification and selected finish so the quoted version is clear.

Compare the 2302A seat configuration or browse the electronic bidet seat collection. Request a drawing-matched offer through the 9CREAT quotation contact page.
