2300A Bidet Toilet Seat: Side Controls

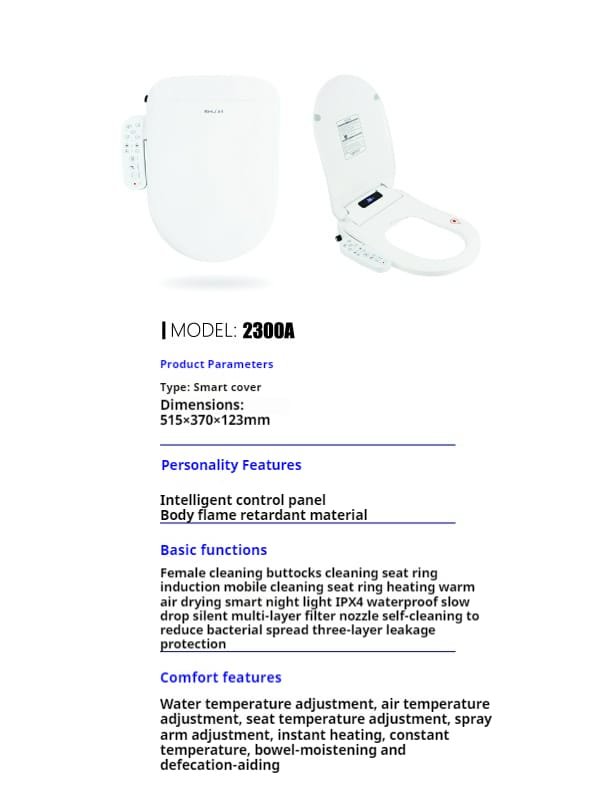

2300A bidet toilet seat is an electronic seat and lid assembly for B2B bathroom sourcing. The 2300A reference pairs a white cover with a side control panel. Its open-lid view shows the seat opening and rear assembly, helping buyers compare the product outline with the bowl they plan to use.

2300A bidet toilet seat specifications

The catalog gives overall dimensions of 515 × 370 × 123 mm. These are product dimensions, not shipping-carton dimensions. Use the illustrated outline as a reference, not proof of universal bowl compatibility.

The catalog lists front and rear washing, oscillating wash, seat sensing, seat heating, warm air drying and a night light. Nozzle self-cleaning and a slow-closing lid also appear in the function list. The comfort section specifies adjustable water, air and seat temperatures, plus spray-arm adjustment and instant water heating.

Fit and order checks

First, send the ceramic bowl drawing and mounting-hole spacing. Check rear clearance and access to the water connection. Also confirm the rated voltage, frequency, plug type and permitted water pressure for the destination market.

For bulk orders, list quantity, required functions, supplied fittings and the approved finish. Request the model-specific MOQ, production lead time, carton dimensions and gross weight in the quotation. A complete smart toilet uses a different packing and supply arrangement.

The catalog includes protection claims, but it does not replace model-specific test documents. Request the applicable evidence before publishing a rating or compliance statement. For UK projects, consult Electrical Safety First bathroom guidance and the project electrician.

2300A bidet toilet seat questions

Q: Are 2300A and 2300AP the same order reference?
No. Keep the full model suffix in the purchase order. The 2300AP catalog separately lists an optional bubble-shield feature; do not assume that option applies to 2300A.

Q: What is needed for a 2300A quotation?
Send the bowl drawing, destination market, quantity and required function list. Include the electrical specification and selected finish so the quoted version is clear.

Compare the 2302A seat configuration or browse the electronic bidet seat collection. Request a drawing-matched offer through the 9CREAT quotation contact page.
